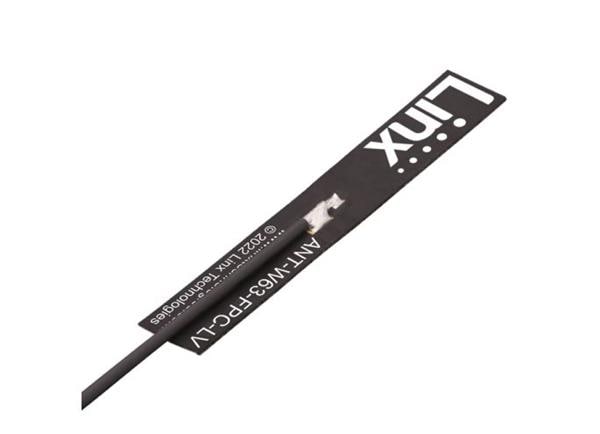

Linx Technologies - TE Connectivity ANT-W63-FPC-LV150M4 FPC Antenna WiFi6 GHz FPC antenna, 45x7mm, inline cable egress, 150mm cable, MHF4
Manufacturer: Linx Technologies - TE Connectivity Model: ANT-W63-FPC-LV150M4 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gain: 4.8 dBi, 6.3 dBi, 7.4 dBi
VSWR: 1.5, 1.6
Style: T-Bar Flex
Width: 7 mm
Height: 0.1 mm
Length: 45 mm
Impedance: 50 Ohms
Cable Type: 1.13 mm Coax
Wavelength: 1/2 Wave
Cable Length: 150 mm
Polarization: Linear
Power Rating: 2 W
Mounting Style: Adhesive Mount
Electrical Type: Dipole
Number of Bands: 3 Band
Maximum Frequency: 7.125 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: MHF4 Plug
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
