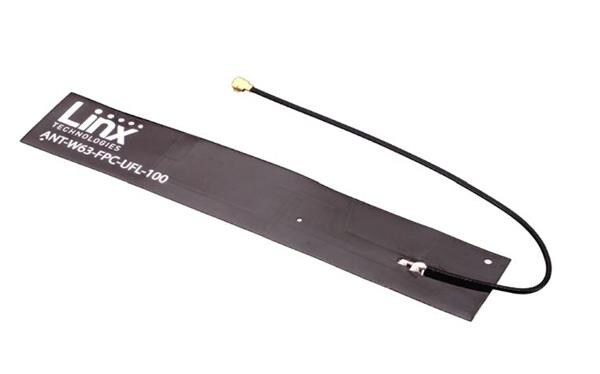

Linx Technologies - TE Connectivity ANT-W63-FPC-UFL-100 Passive Antenna Antenna WiFi6/6E FPC 20x110 100 UFL

Gain: 6.1 dBi, 6.1 dBi, 6.9 dBi

VSWR: 1.2, 3.3, 2.6

Style: I-Bar Flex

Width: 20 mm

Height: 49 mm

Length: 110 mm

Impedance: 50 Ohms

Cable Type: 100 mm RF1.13

Wavelength: 1/2 Wave

Application: Wireless Applications, U-NII, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring

Unit Weight: 1.500 g

Cable Length: 100 mm

For Use With: WiFi 6, WiFi 6E, 802.11ax, WiFi, WiFi 4, WiFi 5, 802.11, 802.15.4, Bluetooth

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded Dipole

Number of Bands: 3 Band

Center Frequency: 2.4 GHz, 5 GHz, 6 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: MHF / U.FL

Protocol - WiFi - 802.11: 802.11 b/g/n/ac/ax, WiFi 4, WiFi 5, WiFi 6, WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 2G/4G/5G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
