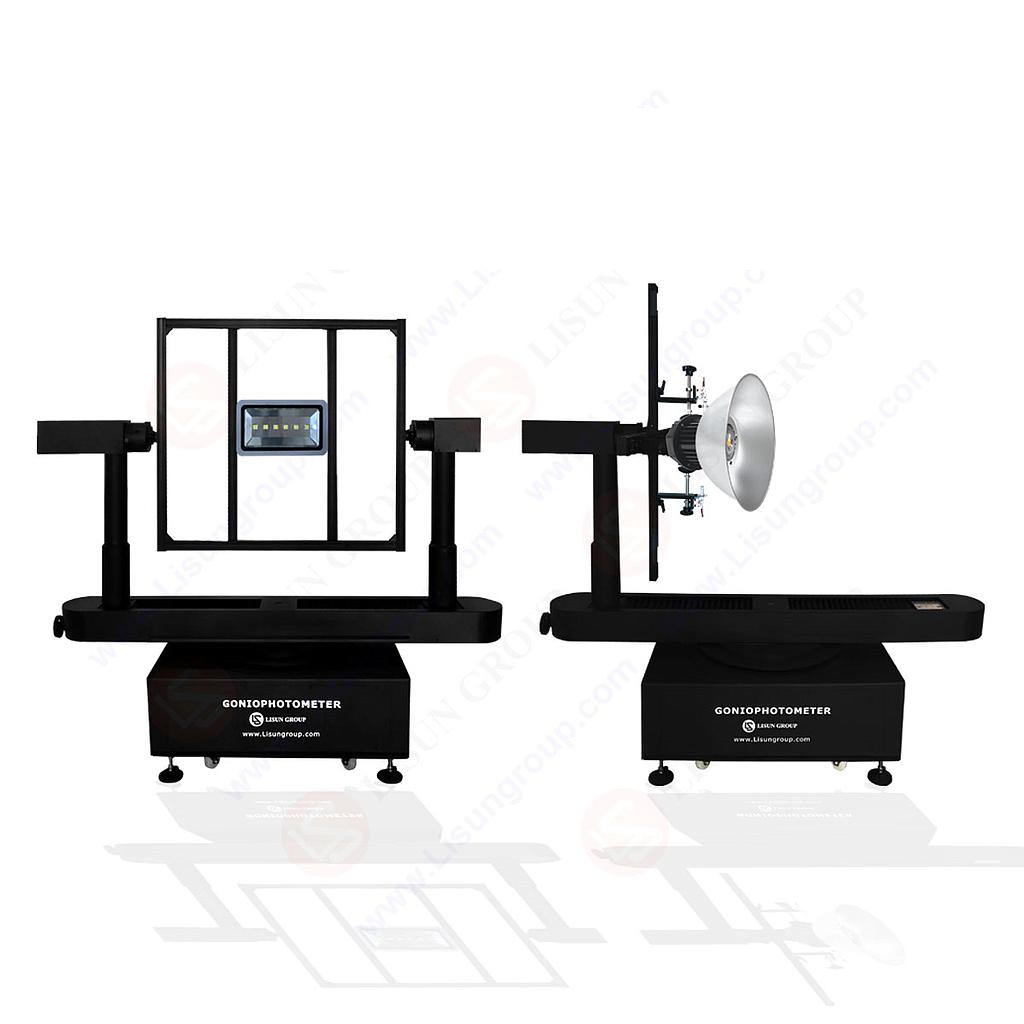

Lisun LSG-1800ACCD High Precision Rotation Luminaire Goniospectroradiometer (0,01lx ~ 99,999lx, Φ 1600*550mm)
Manufacturer: Lisun Model: LSG-1800ACCD Origin: China - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
• Test Max Luminaires size and weight: LSG-1890BCCD is 1900mm/60kg and LSG-1800ACCD is 1600mm/50kg
• Luminosity Testing Range:
Illuminance 0.01lx~99,999lx;
Light Intensity 1.0cd～10^7cd (detector)
• Angle accuracy: LSG-1890BCCD is 0.1°, LSG-1800ACCD is 0.2°
• Spectral Range Wavelength: 350nm ~800nm; Accuracy of wavelength: ±0.5nm
• Photometry Accuracy: CIE Class A (Class L is option)
• Testing Accuracy: 2%(Under Standard lamp); Stray Light: less than 0.1%
The Max Size for the Luminaires Under Test
Non-Flood Lamp Diameter*Depth: Φ 1600*550mm
Flood Lamp (L*M): 600*600mm
Max Weight: 50Kg
VIDEO
Datasheet
Measurement:
Luminous Intensity Data, Luminous Intensity Distribution, Zonal Luminous Flux, Luminaries Efficiency, Luminance Distribution, Coefficient Of Utilization, Luminance Limitation Curves Glare, Maximum Ratio of Distance to Height, Equal Illuminance Diagrams, Curves of Luminaires VS Lighting Area, Isocandela Diagrams, Efficient Luminescence Angle, EEI, UGR, CCT, CRI, Color Temperature Distribution, Spectrum, (x, y)/(u, v), PAR, PPF, PPFD 3D distribution test and etc.
