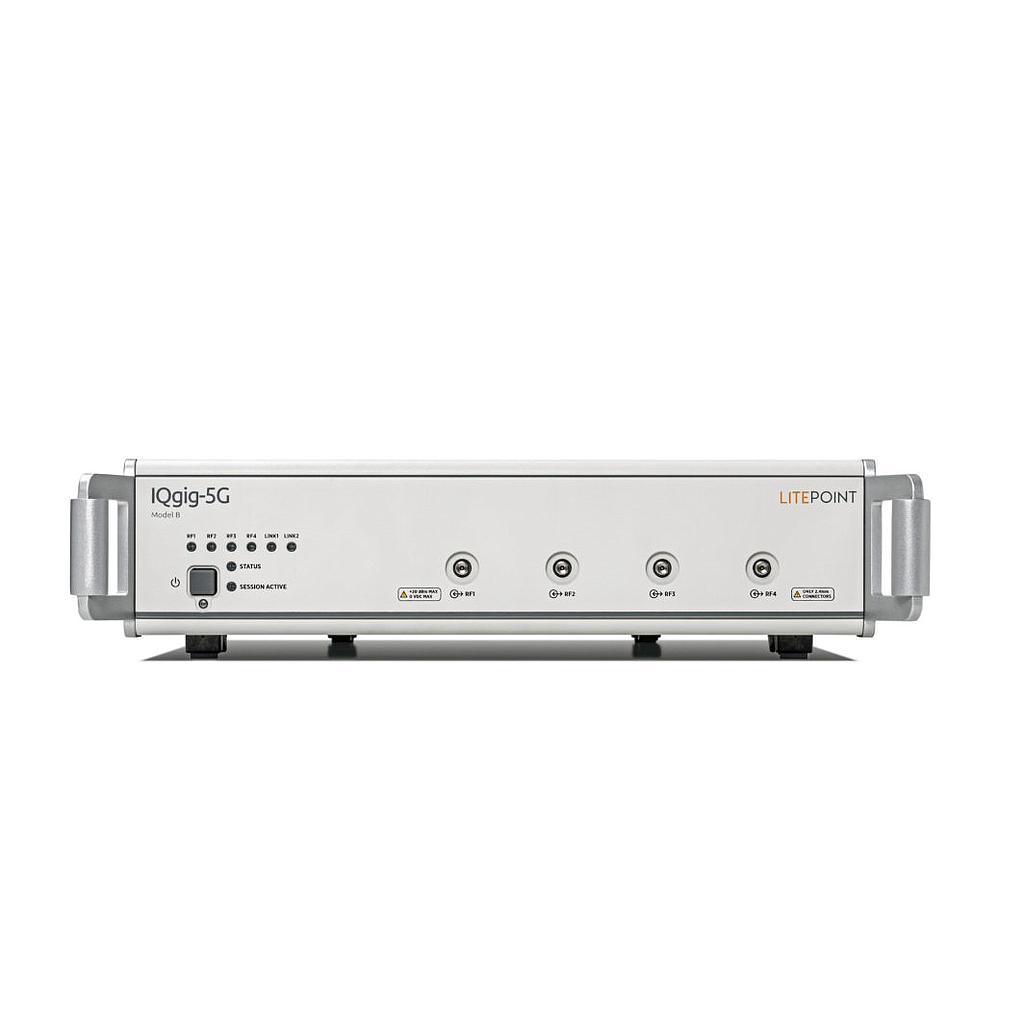

IQgig-5G is a fully integrated, versatile multiband mmWave non-signaling test solution, first of its kind to support all 5G FR2 frequencies within a 23-45GHz range.
Its one-box design makes it simple to set up, use, maintain and trust that you will make reliable measurements when characterizing or manufacturing your 5G devices.
Fully Integrated 5G FR2 Millimeter Wave Test System
All signal generation, analysis, processing, and RF front-end switching is self-contained inside a single chassis
Calibrated RF ports enable direct connection for simple text fixture setups
Lab grade performance in compact 2U form factor
Support for wider frequency range with over 1.7GHz of instantaneous bandwidth
On-the-fly, software controlled frequency switching within 23-45GHz range
Optional over-the-air (OTA) test chamber for testing beamforming verification and characterization of DUT mmWave antennas
Ideal for Beamforming Characterization, Beamforming Verification, RF calibration and Antenna Measurements
All-in-one support for RF Calibration, Antenna measurements, Beam forming characterization and Beam verification
Intuitive GUI enables easy setup, custom test flow and optimization
Advanced software application supports leading-edge functions – chamber calibration & control, data collection, analysis and antenna pattern measurements
Multiple bi-directional source and measurement ports, enable multi DUT testing and simultaneous verification of transmit and receive paths
Support for horizontal and vertical antenna polarization using single test setup
Turnkey Solution for Lab and Multi DUT Testing in Manufacturing Environment
Versatile test solution spanning R&D, DVT and manufacturing test environment
Calibration and verification software IQfact5G enables extensive and faster data logging and analysis
Flexible software architecture allows for integration and correlation of measurements results from lab to factory floor
One-box robustness enables a reliable manufacturing solution with minimal maintenance
5G Technology Options
5G 3GPP NR (Release 15)
5G Small Cell
V5GTF (pre-5G)
Spanning R&D, DVT and Manufacturing Test Environment
R&D lab, DVT, Sampling, Production test environments
From chipsets to modules, final product characterization or manufacturing lifecycle stages
For 5G-enabled mmWave mobile or infrastructure devices
