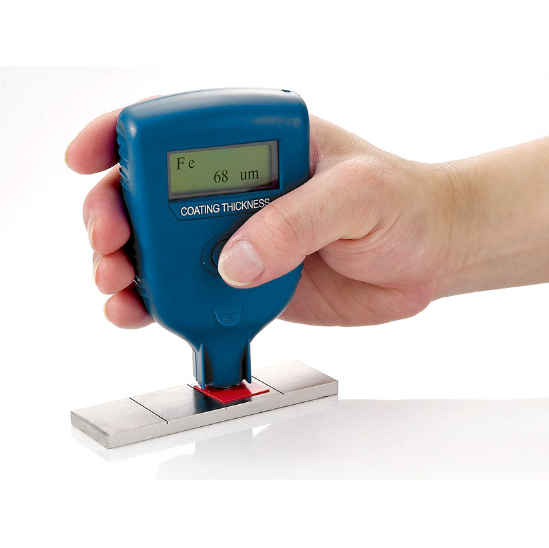

*KCT100 can measure thickness of non-magnetic coating layers covered on magnetic substrate. Such as: non-magnetic (aluminum, chrome, copper, enamel, paint) covered on magnetic substrate (steel, alloy and magnetic stainless steel);
TECHNICAL DATA:
Measuring Range: 0~1250μm
Resolution: 1μm
Working Principle: Magnetic
Substrate: FE base
Accuracy: ±[(1%~3%)H+1μm] Note: H is thickness reading
Min. Measuring Area: Φ15mm
Min. Curvature: Convex radius: 5mm Concave radius: 25mm
Min Thickness of Substrate: Fe: 0.2mm
Power: AAA battery 4 pcs (Non-aviation transport)
Working Temperature: -10°C~60°C
Size :112x69x28mm
Weight: 82g
