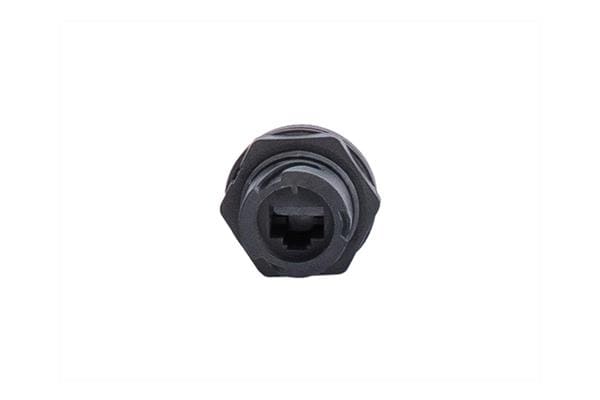

Amphenol LTW ROP-5SRFFH-TCM7001 Circular Backshell RJ, ODVA, Plastic, 1.5A, Cat 5e, Right Angle, Screw Thread, Jack 180 (Horizontal), Receptacle, IP67 Mated
Manufacturer: Amphenol LTW Model: ROP-5SRFFH-TCM7001 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gender: Jack (Female)
IP Rating: IP67
Shielding: Shielded
USOC Codes: RJ45
Application: 1000 Base-T
Configuration: 1x1
Current Rating: 1.5 A
Mounting Angle: Straight
Mounting Style: Panel Mount
Voltage Rating: 44 VDC to 57 VDC
Number of Ports: 1 Port
Locking Mechanism: Three Points Lock
Coupling Mechanism: 3 Points Lock Bayonet
Number of Contacts: 8 Contact
Flammability Rating: UL 94V-0
Number of Positions: 8 Position
Performance Category: Cat 5e
Insulation Resistance: 500 MOhms
Operating Temperature Range: - 40 C to + 105 C
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
Number of Positions / Contacts per Port: 8P8C
