Description:

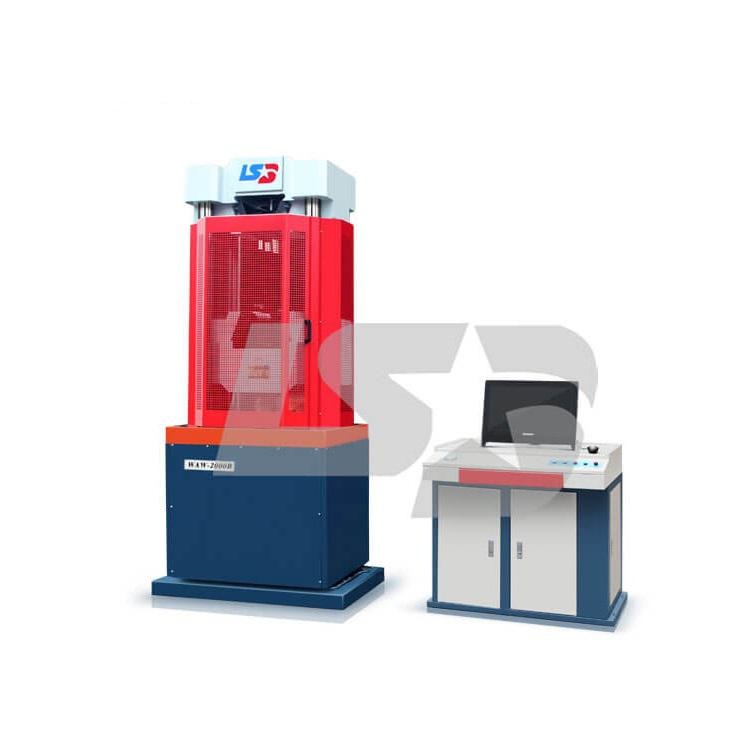

Servo control universal testing machine is easy to install, stable and reliable. The machine is a double space structure, the upper beam and the lower cross beam are the stretching space, the lower beam and the test stand are compressed space, and the test space is automatically adjusted by the sprocket and the screw driven up and down of the beam.
It has a set of servo control software to control machine operation. The test results are shown on the computer and printed easily.
Specification:
Max Test Force: 2000 kn
Measure Range: 5-100 %
Relative Error Value: ±1 %
Max Tensile Space: 790 mm
Max Compression Space: 720 mm
Piston Stroke: 240 mm
Size of Upper and Lower Platen: Φ220, Φ230 kw
Voltage: AC220/AC380V±10% 50Hz
Machine Size: 1200*800*2760 mm
Net Weight: 3500 kg
