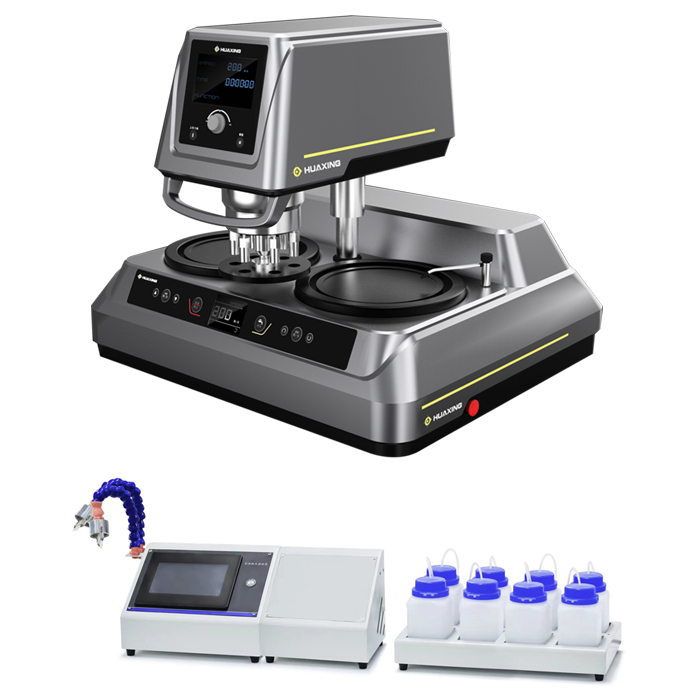

Disc diameter: φ250mm (customized φ230mm, φ300mm)
Disc rotation speed: 50-1000 r/min (variable speed) and 300 / 600 / 900 r/min (3 fixed speed), step 1r/min
Motor quantity: double disc single control with one motor, double disc are controlled with two motors
Display: LCD touch screen control on the polishing head
Data storage: Preset program, and can save other settings
Disc rotation direction: Clockwise and counter clockwise
Water supply control: Automatic
Polishing head rotation speed: 5-150 r/min (variable speed), step 1r/min
Number of samples prepared: 6pcs
Fix paper, cloths and diamond discs by magnetic system and ring
Sample diameter: factory standard φ30mm(diameter φ22-φ45mm can be customized)
Pressure loading: Individual and central pressure loading Individual and centrol pressure force, adjustable force of at least 5-400N step 1N
Sampling time: 0-3000 S
USB - for software updates and for connecting a flash card.
Connector for remote connection and service.
Input voltage: single-phase AC220V 50Hz
Total power: 900W
Dimension: 815*690*755mm
Net weight: 90KG
Gross weight: 120KG
Dropper:
Four channels are set separately and work at the same time
Connect with the polishing machine, and drop liquid according to the polishing parameters set by the polishing machine
Three working modes: Manual/Online/Fully automatic
Each mode can be set independently: dripping speed, drippingtime
Instillation speed: about 6 drops/minute-280 drops/minute
Maximum flow rate: 18 ml/min
Speed adjustment: stepless speed adjustment, from 6 drops/minute to 280 drops/minute
