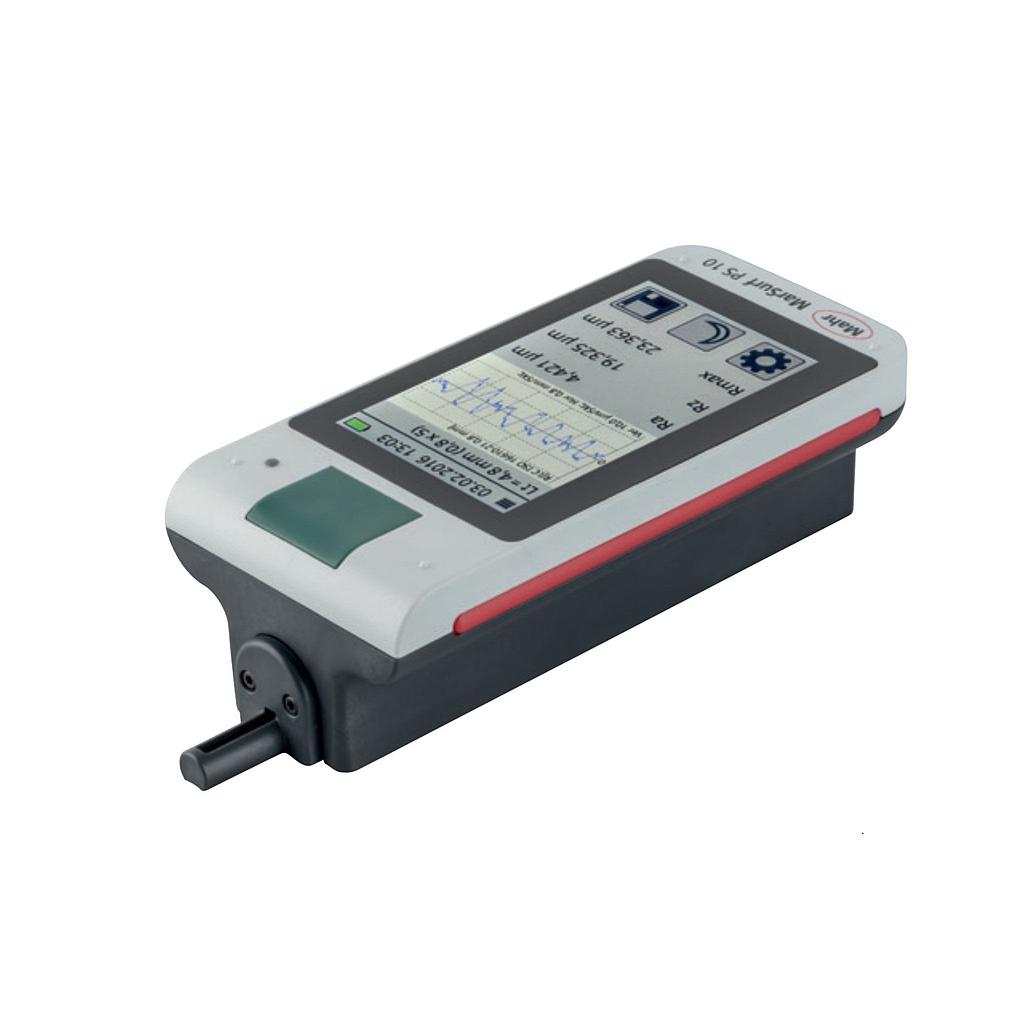

Mahr 6910232 Mobile Roughness Measuring Instrument (PS 10, 0.350mm, 0.00075N)

Parameters: Ra, Rq, Rz (Ry (JIS) is equivalent to Rz), Rz (JIS), Rmax, Rp, RpA (ASME), Rpm (ASME), Rpk, Rk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, RPc, Rmr (tp (JIS, ASME) is equivalent to Rmr), RSm, RSk, RS, CR, CF, CL, R, Ar, Rx, R3z

Stylus: 5 µm

Calibration function: Dynamic; Ra, Rz, Rsm

Storage capacity: Min. 3900 profiles, min. 500.000 results, min. 1500 PDF records,

expandable to 32 GB with Micro SD card

Languages: German, English, French, Italian, Spanish, Portugese, Dutch, Swedish, Russian, Polish, Czech, Japanese, Chinese, Korean, Hungarian, Turkish,Romanian

Other: Lock/password protected, date/time

Data interface:USB, MarConnect (RS232), Micro SD slot for SD / SDHC cards up to 32 GB

System of protection: IP 40

Rechargeable batteries: Lithium-ion battery, min. 1200 measurements

Wide range power supply: 100 - 264 V

H x W x D: 160 mm x 77 mm x 50 mm

Weight (kg): 1.85

Measuring principle: Stylus method

Probe: Inductive skidded probe

Measuring range(mm): 0.350

Profile resolution: 8 nm

Cutoff Ic according to ISO/JIS: 0.25 mm, 0.8 mm, 2.5 mm, automatic filter detection

Number n of sampling length according to ISO/JIS: Selectable: 1 to 16

Traversing length Lt according ISO/JIS: 1.5 mm, 4.8 mm, 15 mm, N x Lc, variable, automatic

Traversing length according ISO 12085 (MOTIF): 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm

Evaluation lenth In according to ISO/JIS: 1.25 mm, 4.0 mm, 12.5 mm

Measuring force (N):0.00075
