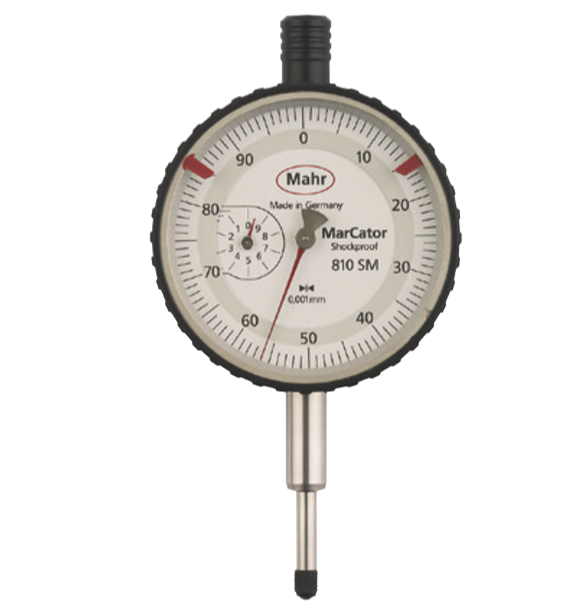

Mahr 4311070 Dial Indicator (810 SM, 1mm)

Product type 810 SM

Measuring span: 1mm

Graduation value: 0.001mm

Type of dial face: 0-100

Range per rev.: 0.1mm

Error limit: 4µm

Error limit, 1 revolution: 3µm

Error limit, 1/2 revolution: 2µm

Error limit, 1/10 revolution: 1µm

Repeatability fw: 1.5µm

Hysteresis fu: 1.5µm

Overtravel: 4mm

Measuring force incoming measuring pin N: 1.3-1.8

Standard: factory

Shockproof movement: yes

Lifting protection cap: yes

Package contains: case

Accessories:

• Adapter bush (.375” / 8 mm), type 940

• Splash proof cap (58 mm)

• Lug back, vertical, for 803, type 966

• Lug back, horizontal, for 803, type 967
