Manufacturer: Manncorp - USA

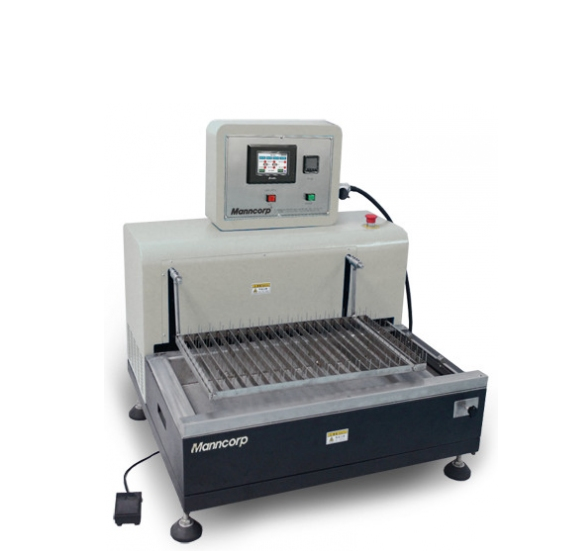

Model: Auto-Dip 6035-TS
Origin: China
Warranty: 12 months
PCB Size:Finger-Type PCB Holder:
450 mm x 280 mm (17.7" x 11") max.
50 mm x 50 mm (1.9" x 1.9") min.
Pin-Type PCB Holder:
600 mm x 350 mm (23.6" x 13.8") max.
60 mm x 60 mm (2.4" x 2.4") min.
Solder Pot Size:650 mm W x 400 mm D x 70 mm H (25.6" x 15.75" x 2.75")
Solder Pot Capacity:approx. 100 Kg (220 lbs.) Lead-Free SAC; approx. 120 Kg (265 lbs.) SnPb
Solder Pot Temperature:recommended 285°C (545°F) Lead-Free SAC; recommended 265°C (50 °F) SnPb; 450°C (842°F) max.
Solder Dwell Time:1-10 sec.
Preheat Time:0-120 sec.
Overall Dimensions:
Base Unit: 850 mm W x 800 mm D x 550 mm H (33.5" x 31.5" x 21.6")
Touchscreen Console: 400 mm W x 130 mm D x 280 mm H (15.75" x 5.1" x 11")
Weight:
Base Unit: 100 Kg (220 lbs.)
Console: 5 Kg (11 lbs.)
Shipping Weight:Approx. 353 lbs. (160 kgs)
Power Requirements:220V, Single Phase, 50/60 Hz, 40A, 7.2KW
