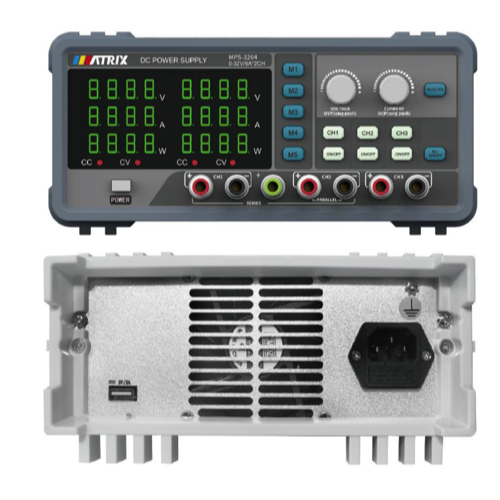

MATRIX MPS-3264 Multi Channel DC Power Supply (32V, 2.5V/3.3V/5V, 6A, 3A, 4CH)

Rated input voltage: AC220V±10% or 110v±10%

Rated output:

    Voltage: 0~32V (CH1, CH2), 2.5V/3.3V/5V (CH3), 5V (CH4(USB))

    Current: 0-6A (CH1, CH2), 3A (CH3), 2A (CH4(USB))

Rated output power: 409W

Voltage transformation method: Switching Mode Power Supply

Load regulation rate:

    Voltage: < 0.1% + 8mV (CH1, CH2)

    Current: < 0.1% + 5mA (CH1, CH2)

Line regulation rate:

    Voltage: < 0.1% + 8mV (CH1, CH2), < 0.1% + 10mV (CH3, CH4(USB))

    Current: < 0.1% + 5mA (CH1, CH2), < 0.1% + 5mA (CH3, CH4(USB))

Setting accuracy:

    Voltage: ≤0.2%+2bit (CH1, CH2), ≤0.2%+2bit (CH3)

    Current: ≤ 0.5% + 5mA (CH1, CH2)

Readback accuracy:

    Voltage: ≤0.1%+2bit (CH1, CH2), ≤0.1%+2bit (CH3)

    Current: ≤ 0.5% + 5mA (CH1, CH2)

Readback resolution:

    Voltage: 10mV (CH1, CH2)

    Current: 1mA (CH1, CH2)

Ripple (5Hz sim 1MHz ):

    Voltage: ≤ 10 mVrms(CH1, CH2, CH3, CH4(USB))

    Current: ≤ 5mArms (CH1, CH2, CH3, CH4(USB))

OVP: 0 - (32V ± 0.2)% * FS(CH1, CH2)

Maximum voltage: (32V ± 0.2)%(CH1, CH2)

OCP: 0 - (6.1A ±0.2)%  FS (CH1, CH2)

Maximum current: (6.1A ± 0.2)% (CH1, CH2)

Temperature coefficient:

Operating environment: 0 - 40 °C <= 80% RH

Storage environment: -15 to 70°C ≤ 85% R.H

Machine size (WxHxD): 220 x 150 x 330

Net weight: 3.5 kg

Gross weight: 4.3 kg
