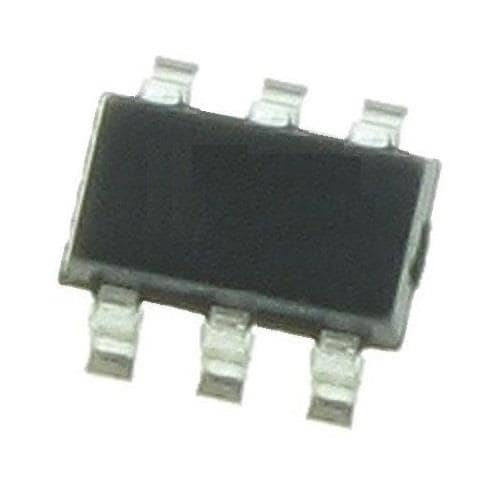

Maxim Integrated MAX2671EUT-T Up Converters 400MHz to 2.5GHz Upconverter
Manufacturer: Maxim Integrated Model: MAX2671EUT-T - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gain: 8.9 dB
Technology: Si
Unit Weight: 36 mg
IF Frequency: 40 MHz to 500 MHz
LO Frequency: 600 MHz to 2.5 GHz
RF Frequency: 400 MHz to 2.5 GHz
Mounting Style: SMD/SMT
NF - Noise Figure: 9.3 dB
Pd - Power Dissipation: 696 mW
Maximum Input Frequency: 2.5 GHz
Operating Supply Current: 11.8 mA
Operating Supply Voltage: 3.3 V, 5 V
P1dB - Compression Point: - 6 dBm
Maximum Operating Frequency: 500 MHz
OIP3 - Third Order Intercept: 9.6 dBm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
