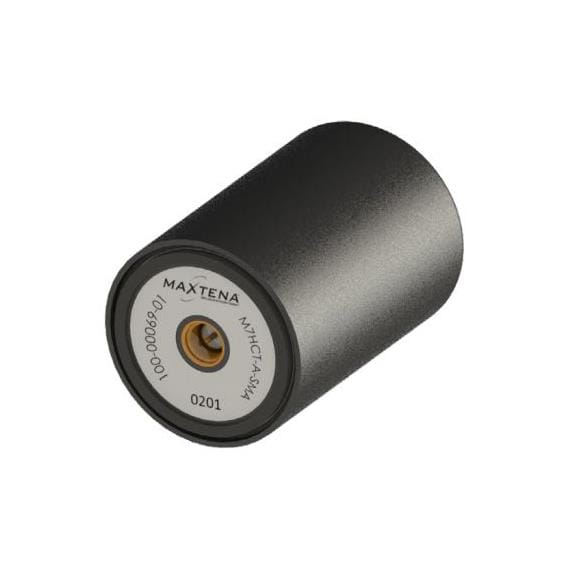

Maxtena M7HCT-A-SMA Active Antenna Multi-Frequency Active Antenna L1: GPS, GLONASS, GALILEO, BEIDOU L2: GPS L2C, GALILEO E5B, GLONASS L30C

Gain: 1.1 dB, 0.5 dB

VSWR: 2:1, 2:1

Style: Stubby

Length: 51 mm

Diameter: 34 mm

IP Rating: IP67

Application: UAV, Drones, UGV, Unmanned Systems, High Precision Navigation, Military, Security, Agriculture, Farmtech, Handheld GNSS Devicess

Unit Weight: 25 g

Polarization: RHCP

Mounting Style: Panel Mount

Number of Bands: 2 Band

Center Frequency: 1.2115 GHz, 1.6275 GHz

Mechanical Style: Helical

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.192 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
