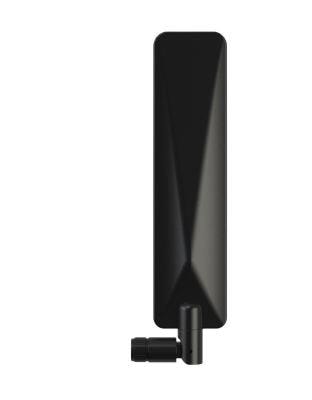

Maxtena MEA-5GNR-UWB-SMA Antenna 5GNR/UHF Connector Mount

Gain: - 4.5 dBi, 0.5 dBi, 2.1 dBi, 1.5 dBi, 2.5 dBi

VSWR: 3.8:1, 1.7:1, 2.5:1, 4.1:1, 2.1:1

Style: Straight

Width: 38 mm

Height: 13.8 mm

Length: 171 mm

Bandwidth: 450 MHz, 600 MHz, 700 MHz, 850 MHz, 2600 MHz, 4500 MHz, 5800 MHz

Impedance: 50 Ohms

Application: IOT, Telematics

Polarization: Linear

Mounting Style: Screw Mount

Number of Bands: 5 Band

Center Frequency: 410 MHz to 496 MHz, 617 MHz to 960 MHz, 1.427 GHz to 2.69 GHz, 3.3 GHz to 5 GHz, 5.15 GHz to 5.925 GHz

Mechanical Style: Screw

Maximum Frequency: 2.69 GHz

Minimum Frequency: 410 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
