The DZ4-T series features include:
Made in Japan: Superb Japanese optical quality and craftmanship
Zoom ratio: 12 : 1 (0.83X to 10X) zoom ratio
Total magnification: 25.2X to 4200X (with the appropriate objectives)
Illumination: Coaxial reflected illumination
C-mount: Built-in C-mount for 1/2” CMOS, CCD or analog cameras
Modular design: Lightweight and compact, and customizable modular to be fitted in OEM application
Versatility: Many versatile configurations available

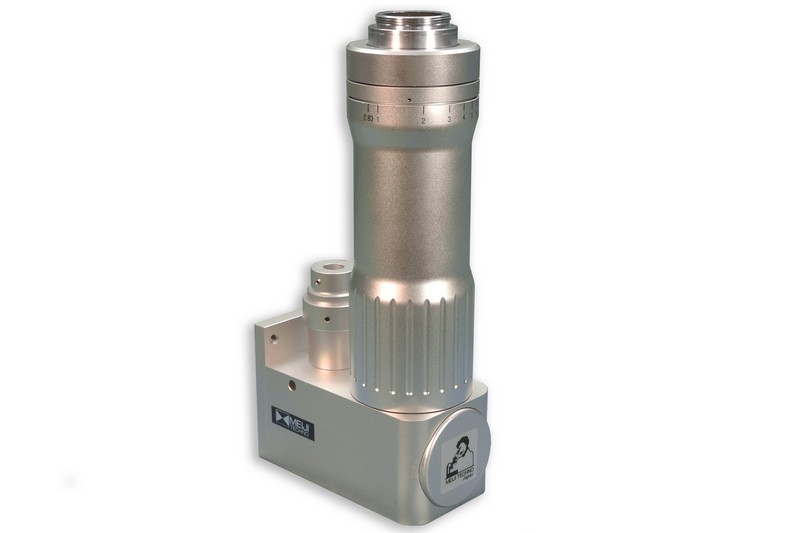

The DZ4-T is Meiji Techno’s highest magnification zoom system in our product line. With it’s zoom Ratio of 12 : 1 and stepless magnification change from 25.2x to 4200x with changing objective with a built-in C” mount lens system that will accommodate ½” CMOS, CCD or Analog cameras in the market. The DZ4-T can be ordered with a focus mechanism that will fit a 38mm post or a 20mm post stand. Integrated single arm fiber optic coaxial reflected illumination with a choice of Halogen or LED light source. Can be equipped with a reflected or transmitted light stage that accommodates the Mitutoyo digimatic indicators for X, Y or Z accurate measurement capabilities. The DZ4-T has the ability to reach the observation position quickly at low magnification and magnify the image effortlessly. The DZ4-T can be used with various types of illuminations and has a wide application range . Providing a very high and clear resolution that will display a crisp picture on any monitor.
