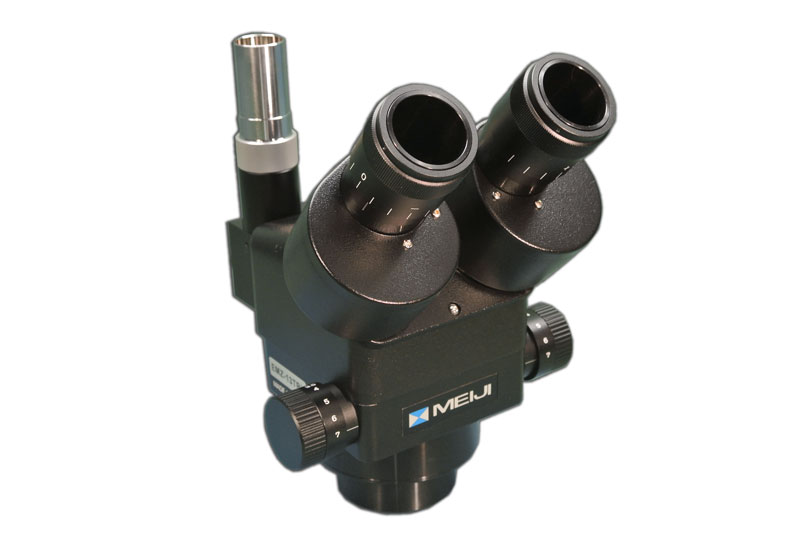

Meiji Techno EMZ-13TRH Trino Zoom Stereo Body (1.0x – 7.0x)

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction

Zoom Ratio: 7:1

Zoom Range: 1x - 7x

Zoom Knobs Markings: 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 5, 6, 7

Zoom Control: Dual, graduated, bilateral

Magnification: 10x - 70x  (10x eyepieces)

Objective Lens: Brass Construction

Field of View: 23mm - 3.2mm

Working distance: 90mm

Eyetube Inclination: 45°

Eyepieces: High Eyepoint 10x, ( MA522- Paired) (required)

Interpupillary Distance: 54mm - 75mm

Dioptric Adjustment: Dual (+/- 5 diopters)

Extended Mag Range: 3x - 420x (With auxiliary lenses and eyepieces)

Extended Working Distances: 32mm - 230mm (With auxiliary lenses and eyepieces)

Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)

Mounting: Fits 84.5mm Diameter Focus Holders
