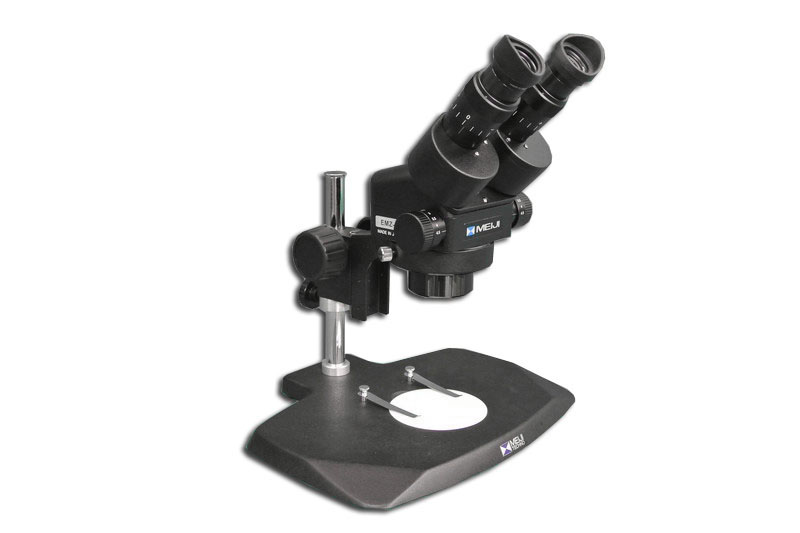

Meiji Techno EMZ-5/BLACK + MA502 + PK/BLACK Stereo Zoom Microscopes (7X – 45X)

EMZ-5/BLACK

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction

Zoom Ratio: 6.5:1

Zoom Range: 0.7x - 4.5x

Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5

Zoom Control: Dual, graduated, bilateral

Magnification: 7x - 45x  (10x eyepieces)

Objective Lens: Brass Construction

Field of View: 32mm - 5.1mm

Working distance: 93mm

Eyetube Inclination: 45°

Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)

Interpupillary Distance: 54mm - 75mm

Dioptric Adjustment: Dual (+/- 5 diopters)

Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)

Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)

Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)

Color: Black

Mounting: Fits 84.5mm Diameter Focus Holders

MA502

Eyepiece: Super Wide Field 10x Eyepieces (paired), (30.5mm Outer Diameter), Field No. 23 (With 25mm reticle mount)

PK/BLACK Stand

PK Stand is Meiji Techno’s Low Profile Wide Ergonomic Plain which requires external illumination

Equipped with a F focusing holder with an 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable

PK Stand is designed for the zoom (EMZ Series), and turret (EMT Series), fixed (EMF Series) stereo bodies Pillar diameter is 20mm, height is 11” (280 mm)

Auto-Voltage Sensing Power supply (100V to 240V)

MA551-A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens

ESD Safe, Chemical Resistant Finish

Cast Aluminum Alloy Construction

Compact Footprint Design: Length:330mm, Width: 300mm, Height: 255mm

Stable rubber feet and locking pin for head stability
