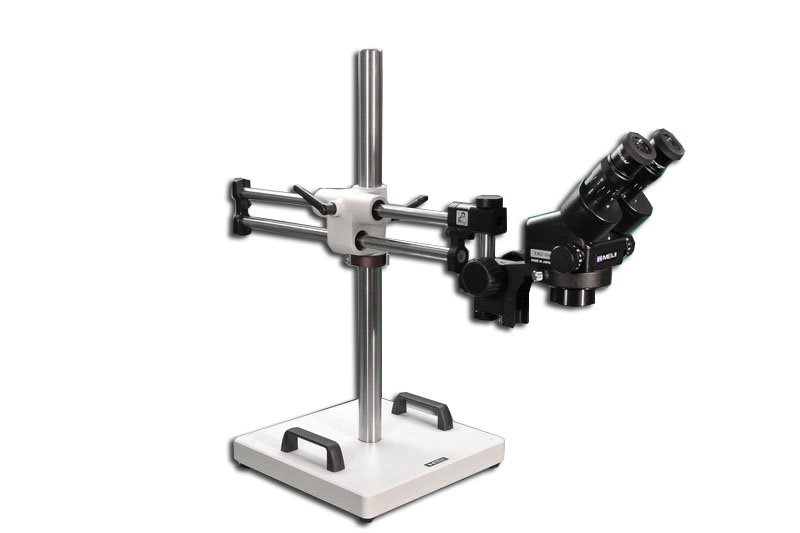

Meiji Techno EMZ-5H/BLACK + MA522 + F + BAS-2 Stereo Zoom Microscopes (7X – 45X)

EMZ-5H

Zoom Ratio: 6.5:1

Zoom Range: 0.7X – 4.5X

Magnification: 7X – 45X  (10X eyepieces)

Field of View: 32mm – 5.1mm

Working distance: 93mm

Extended Mag Range: 2.1X – 270X (With auxiliary lenses and eyepieces)

Mounting: Fits 84.5mm Diameter Focus Holders

MA522: Eyepieces

Included is the MA522 Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount) (Fits EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H models only).

F: Focus Holder

The F holder is a focusing holder with a rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

BAS-2: Stand

The BAS-2 is a heavy duty dual arm industrial-type boom stand that comes with a 20mm diameter drop down mounting post to perfectly complement our EMZ (Zoom), EMT (Turret), EMF (Fixed) Series Stereo Microscope (with the proper focus block)

Datasheet
