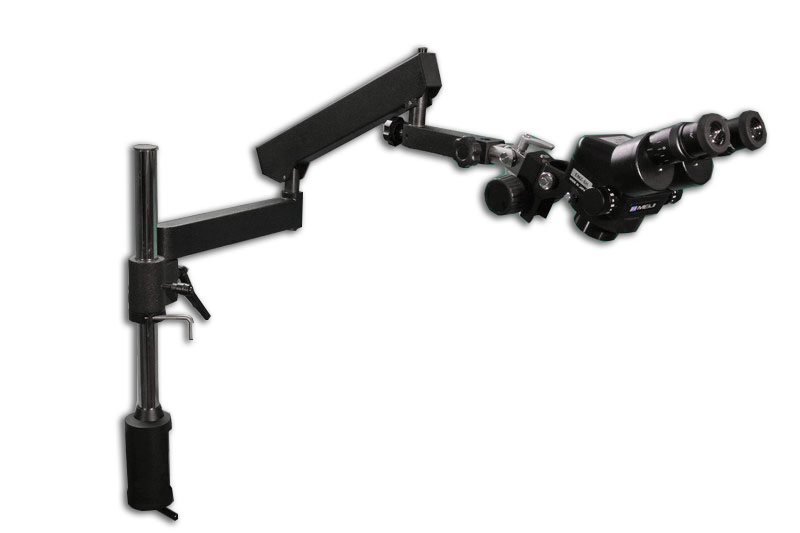

Meiji Techno EMZ-5H/BLACK + MA522 + FS/BLACK + FA-3 Stereo Zoom Microscopes (0.7x – 4.5x)

EMZ-5H/BLACK Body:

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction

Zoom Ratio: 6.5:1

Zoom Range: 0.7x - 4.5x

Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5

Zoom Control: Dual, graduated, bilateral

Magnification: 7x - 45x  (10x eyepieces)

Objective Lens: Brass Construction

Field of View: 32mm - 5.1mm

Working distance: 93mm

Eyetube Inclination: 45°

Eyepieces: High Eyepoint 10x, (MA522- Paired) (required)

Interpupillary Distance: 54mm - 75mm

Dioptric Adjustment: Dual (+/- 5 diopters)

Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)

Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)

Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)

Mounting: Fits 84.5mm Diameter Focus Holders

MA522 Super Widefield High Eyepoint 10X

Super Widefield Eyepiece High Eyepoint 10X (pair) Field No. 23.0, 30.0mm O.D. (Outer Diameter), with 25mm reticle mount. This 10X Super Widefield Eyepiece is designed to fit our Meiji Techno models High Eyepoint models (EMZ-5H, EMZ-5TRH, EMZ-8TRH, EMZ-10H, EMZ-13H, and EMZ-13TRH)

MA522- Super Widefield Eyepiece High Eyepoint 10X (Paired)

FS/BLACK-holder: Uses 15.8mm (5/8") diameter, 34.5mm long mounting pin. The 84.2mm diameter opening accepts all EM Series stereo bodies.

FA-3B

Stand Type: Flexible Arm

Vertical Post Height: 384mm

Maximum Vertical Post Extended Length: 254mm

Vertical Post Diameter: ?37.2mm

Cross Adapter Type: Dual Hole Adapter

Total Arm Length: 800mm

Mounting Hole on the Top of Horizontal Arm: 5/8" End Adapter

Horizontal Rotation Angle: 360 degrees Rotatable

Horizontal Arm Travel Maximum Load: 9.07kg (20lbs)

Horizontal Arm Travel Mode on Horizontal Direction: Manual

Horizontal Arm Travel Mode on Z Direction: Manual

Base Type: Clamp

Base Shape: Rectangle

Base Dimensions: 104mm x 77mm x 136mm

Mount Adapter Size of Stand: ?22.2mm

Clamp Opening Size: 0-40mm

Surface Treatment: Electroplating Black

Material: Metal
