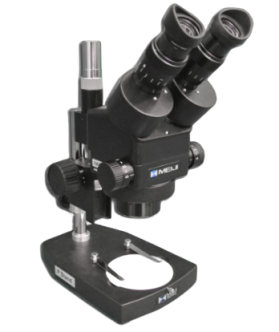

Meiji Techno EMZ-8TR/BLACK + MA502 + P/BLACK Stereo Microscopes (7X – 45X)

EMZ-8TR/BLACK Body

Body: Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction

Trinocular Port: 23.2mm I.D, 25.2mm O.D

Zoom Ratio: 6.5:1

Zoom Range: 0.7x - 4.5x

Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5

Zoom Control: Dual, graduated, bilateral

Magnification: 7x - 45x  (10x eyepieces)

Objective Lens: Brass Construction

Field of View: 32mm - 5.1mm

Working distance: 104mm

Eyetube Inclination: 45°

Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)

Interpupillary Distance: 54mm - 75mm

Dioptric Adjustment: Dual (+/- 5 diopters)

Extended Mag Range: 2.45x - 202.5x (With auxiliary lenses and eyepieces)

Extended Working Distances: 57mm - 250mm (With auxiliary lenses and eyepieces)

Auxiliary Lenses: 0.28x (300mm), 0.35x (250mm), 0.44x (184mm), 0.5x (174mm), 1.5x (57mm), and 2x (36.6mm) (optional)

Mounting: Fits 84.5mm Diameter Focus Holders

MA502

Eyepiece: Super Wide Field 10x Eyepieces (paired), (30.5mm Outer Diameter), Field No. 23 (With 25mm reticle mount)

P Stand

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep

Pillar Height: 9” height - 20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)

Reversible Black & White Stage Plate: 94.5mm Round (MA568)

Color: Black

Stage Clips: 75mm clip length, 4mm pin, paired (MA593)

Focusing Holder: F Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo body.  Rack and pinion mount allows smooth precise focusing over 55mm of travel.  Coarse focus mechanism incorporates a slip clutch and tension adjustment ( F holder)
