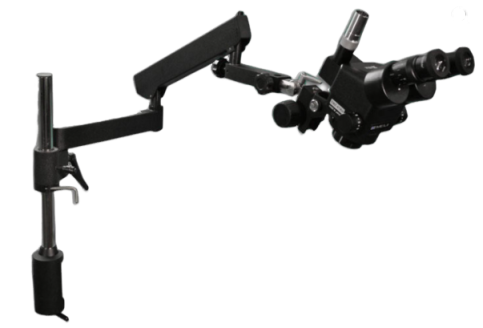

Meiji Techno EMZ-8TRH/BLACK + MA522 + FS/BLACK + FA-3 Stereo Microscopes (7X – 45X)

Microscope Configuration

EMZ-8TRH

Zoom Ratio: 6.5:1

Zoom Range: 0.7X–4.5X

Magnification: 7X–45X (10X eyepieces)

Field of View: 32mm–5.1mm

Working distance: 104mm

Extended Mag Range: 2.45X–202.5X (With auxiliary  lenses and eyepieces)

Trinocular Port: 23.2mm I.D, 25.2mm O.D

Mounting: Fits 84.5mm Diameter Focus Holders

MA522

Super Widefield Eyepiece, high eye point 10X (paired) (With 25mm reticle mount)

FS/BLACK

Uses 15.8mm (5/8") diameter, 34.5mm long mounting pin. The 84.2mm diameter opening accepts all EM Series stereo bodies.

FA-3B

Stand Type: Flexible Arm

Vertical Post Height: 384mm

Maximum Vertical Post Extended Length: 254mm

Vertical Post Diameter: ?37.2mm

Cross Adapter Type: Dual Hole Adapter

Total Arm Length: 800mm

Mounting Hole on the Top of Horizontal Arm: 5/8" End Adapter

Horizontal Rotation Angle: 360 degrees Rotatable

Horizontal Arm Travel Maximum Load: 9.07kg (20lbs)

Horizontal Arm Travel Mode on Horizontal Direction: Manual

Horizontal Arm Travel Mode on Z Direction: Manual

Base Type: Clamp

Base Shape: Rectangle

Base Dimensions: 104mm x 77mm x 136mm

Mount Adapter Size of Stand: ?22.2mm

Clamp Opening Size: 0-40mm

Surface Treatment: Electroplating Black

Material: Metal
