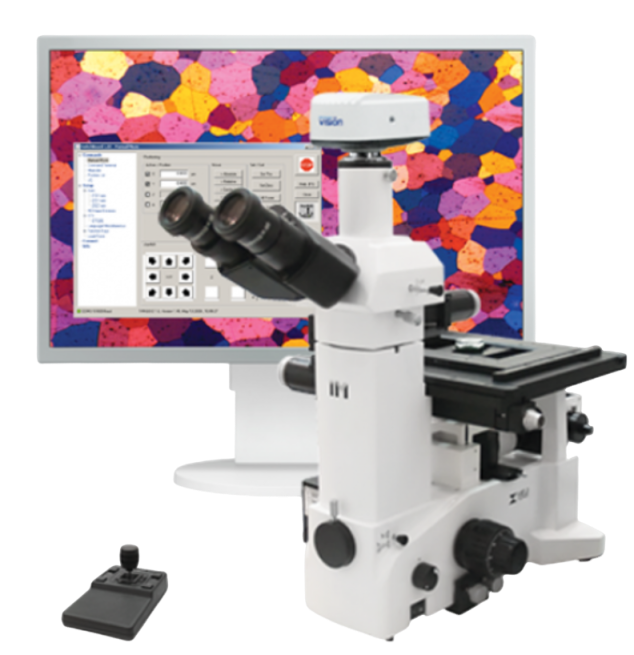

Meiji Techno IM7200M Motorized Inverted Metallurgical Microscope

IM7200M

Motorized scanning stage for metallurgical microscope, 3 levels

Stage x-y movement: 120 x 100 mm (4.7 inches x 3.9 inches)

Automated focus control (Z-movement)

Mechanical stage and focus control

Vision CAM 3200- USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS

PC/Monitor – CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080

ICOS™(Infinity Corrected Optical System with tube lens: F=200 mm) with advanced optics

Super widefield eyepieces 10x (for spectacle wearers), 20 mm linear field

Siedentopf type binocular head with photo and video output

Revolving quintuple nosepiece for 5 objectives tilting to the left

Reflexless Objective Planachromat: E5x, E10x, E20x, E50x, and E100x (optional)

Vertical Koehler illuminator with halogen light source (6V, 30W)

Power supply with automatic voltage detection and brightness adjustment

Varied adapters for CCD/CMOS video cameras, digital cameras and 35 mm-film cameras for photo and video documentation

Research methods include reflected light, brightfield, and polarization

Photo/video output in the front part of the base

Photo and video documentation system included

Meiji Techno IM7200M has the following items:

Microscope Components

IM7200 microscope stand

Trinocular head with photo port

Eyepiece block for Siedentopf style head

SWH 10x, F.N. 22mm eyepiece (2)

Rubberized Eyepiece eyeshields (2)

Kohler vertical illuminator with halogen light source (6V, 30W)

Blue filter

Green filter

Polarization filter

Neutral density filter

Stage Components

Motorized scanning stage 120x100 mm

MA motorized focus drive

Adapter plate for focus drive (two plates, steel pin, screw)

Retaining ring for focus drive

Spring-loaded coupling with two screws

Tango 3-axis controller and 3-axis joystick

Countersunk screw M3x6 DIN 7991 for focus drive (2)

Allen screw M3x8 DIN 912 for stage (4)

Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3)

CPU and Monitor Components

High power PC with monitor and keyboard

Mouse with mouse pad

Microscope dust protection

Object micrometer

3-axis motor cable

Power cable (specify 110V or 220V)

Surge protector

Microscope Objectives

Objective Planachromat E5x/0.10

Objective Planachromat E10x/0.25

Objective Planachromat E20x/0.40

Objective Planachromat E50x/0.75

Microscope Camera

Optical C”-mount 0.5x

Digital camera CAM V3200

Camera power supply

Camera power extension cord

Camera USB cable
