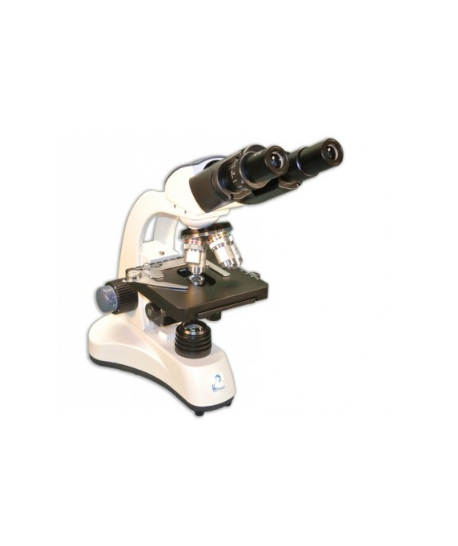

Meiji Techno MT-14 Binocular Brightfield Compound Microscopes (4X, 10X, 40X, 100X)

EYEPIECE

Eyepiece (Ocular Lens) - Lens closest to the observer’s eye, magnifies the primary image formed by the objective lens. Locked in Secured DIN WF 10x/18 mm eyepiece with pointer on Binocular head

VIEWING HEADS

Binocular 30° inclined tubes

OBJECTIVE TURRET

Quadruple forward-facing objective nosepiece on ball bearings - Revolving turret which holds objective lenses, permits changes of magnification by rotating different power objective lenses in the optical path

OBJECTIVES

All models are equipped with Achromatic DIN Semi Plan corrected 4x/0.13, 10x/0.25 and S40x/0.65 and S100x/1.25 objectives

ANTI-FUNGUS COATING

All optical parts are anti-fungus treated for mold prevention

ERGONOMIC HANDLE

Easy to grab handle for portability and ease of storage

STAGE

Plain 123 x 119 mm plain stage microscope where the specimen slide is placed

STAGE CLIPS

Two stage clips hold specimen slide in place on stage. Microscope stage is specially drilled and tapped to accept standard stage clips

FOCUS CONTROLS

Low positioned Ergonomic Coaxial Focus Control with 200 µm fine adjustments, 2 µm precision, located on each side of arm, raise or lower the stage to bring specimen image into focus. Fine Focus knobs (smaller knobs situated below coarse focusing knobs) allow more precise image adjustment

ILLUMINATION

Microscope is equipped with sub-stage built in LED illumination which provides even intensity light and low power consumption. 1 Watt with internal power supply

ABBE CONDENSER

N.A. 1.25 with iris diaphragm lever for height adjustability, provides a more sophisticated method of controlling the sub-stage illumination, and assists in obtaining optimum image resolution and contrast

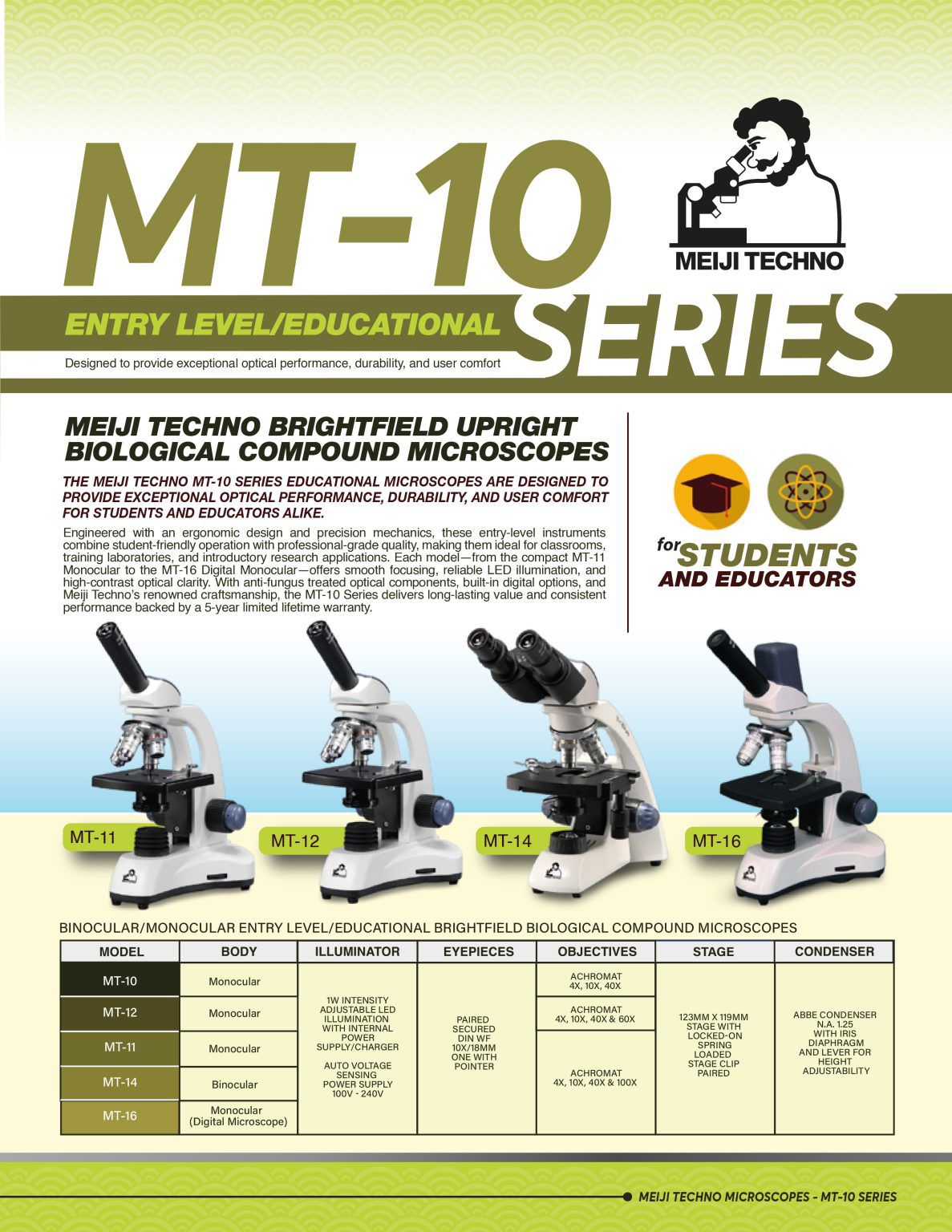

Datasheet
