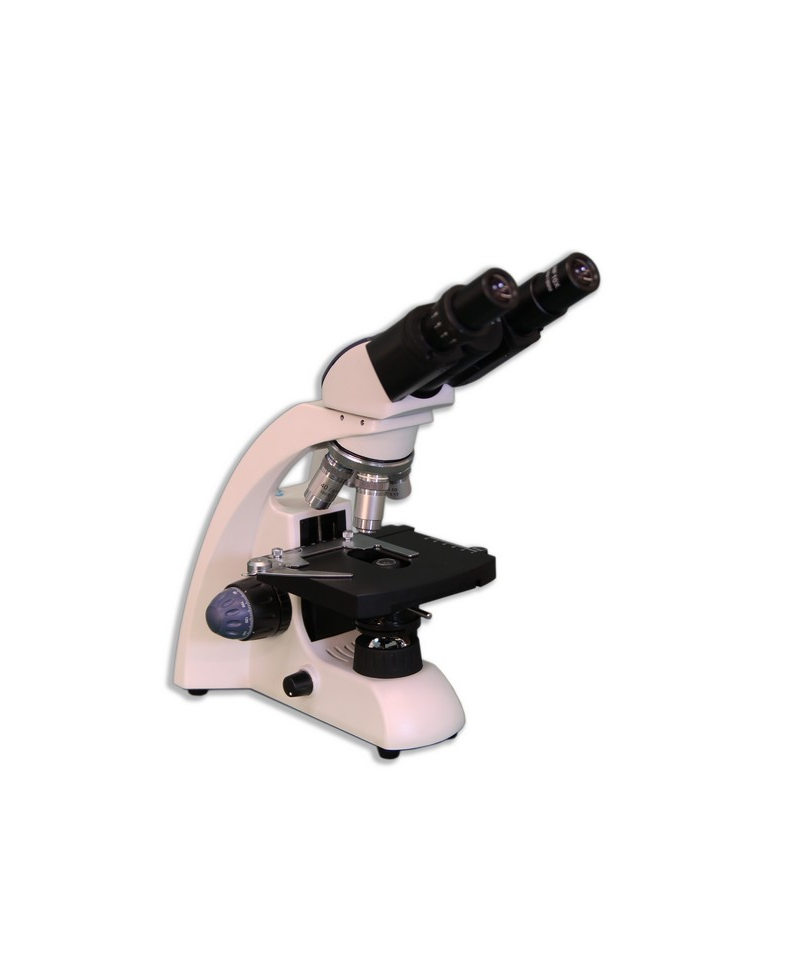

Meiji Techno MT-30 Binocular Biological Microscope (4X, 10X, 40X, 100X)

Viewing Heads: Binocular 30° inclined tube

Eyepieces: Paired DIN WF 10x/20 mm, F.O.V. 23.2 mm

Objectives: All models are equipped with Achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 andS100x/1.25 objectives

All optical parts are anti-fungus treated

Nosepiece: Revolving quadruple reversed nosepiece on ball-bearings

Stage: 130 × 130 mm with integrated mechanical stage

Condenser: Abbe condenser, N.A. 1.25 with iris diaphragm and height adjustment lever

Focusing Adjustment: Coaxial coarse and 200 µm fine adjustments; 2 µm precision; friction adjustment

Illumination: 1 W intensity adjustable LED illumination with internal power supply / charger and 3 rechargeable NiMH AA batteries
