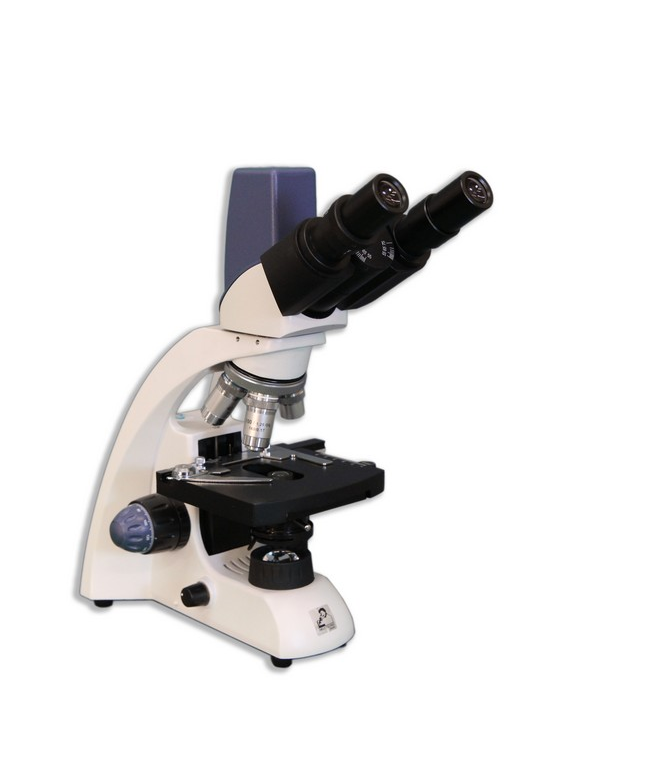

Meiji Techno MT-31 Compound Binocular Biological Microscopes (4X, 10X, 40X, 100X)

Viewing Heads: Binocular 30° inclined tube equipped with a 5MP 1/2 inch CMOS Color USB2 camera @ 2048 x 1536 pixels

Eyepieces: Paired DIN WF 10x/18 mm, F.O.V. 23.2 mm

Objectives:  achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 and S100x/1.25 objectives

Anti-fungus: All optical parts

Nosepiece: Revolving quadruple reversed nosepiece on ball-bearings

Stage: 130 × 130 mm with integrated mechanical stage

Condenser: Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustment

Focusing Adjustment: Coaxial coarse and 200 µm fine adjustments; 2 µm precision; friction adjustment

Illumination: 1W LED, intensity adjustable; internal power supply with rechargeable 3 NiMH AA batteries
