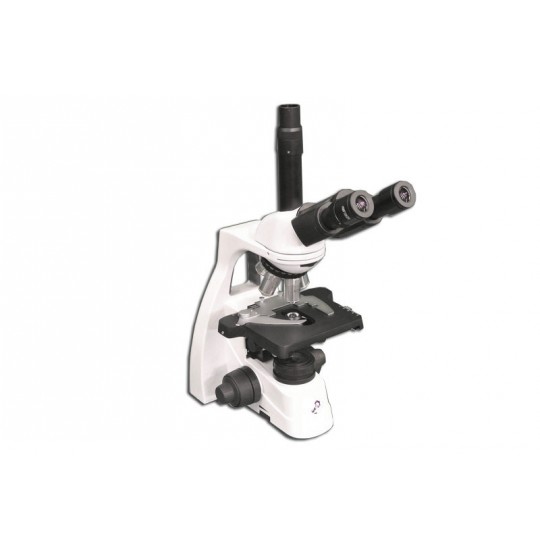

Meiji Techno MT-430 Trinocular Compound Biological Microscope (4X, 10X, 40X, 100X oil)

Viewing Heads

Trinocular with a Siedentopf head, 30° inclined tube

Equipped with a diopter ±5 adjustment on left eyepiece.

Interpupillary distance adjustment 48-76mm

360° degree rotatable

 Plan infinity corrected objectives have a unique swiveling system of the eyepiece tubes for ergonomic positioning of both tubes in a high (431mm) and in a low position (377mm)

Eyepieces

Paired HWF 10x/20mm F.O.V. 23.3mm eyepiece

Integrated diopter adjustment

Objectives

Infinity Corrected Plan Achromat 4X/N.A. 0.10, 10X/N.A. 0.25, 40X/N.A. 0.65 spring loaded, 100X oil N.A. 1.25, 180mm tube length

Spring loaded objectives

All optical parts are anti-fungus treated, for humid and tropical climates

Nosepiece

Revolving quintuple reversed nosepiece on ball-bearings, RMS threads

Stage

152/197 mm x 131 mm integrated mechanical stage

Equipped with a heating stage which can set up to 50°C controlled by a PID temperature.

X-Y movement of 75 mm x 36 mm rackless stage

Locked-on spring loaded stage clip (paired)

Condenser

Abbe condenser, N.A. 1.25

Iris diaphragm and swing-out filter holder.

Focusing Adjustment

Double coaxial coarse and 200 µm fine adjustments per rotation, total travel range 19mm

Friction adjustment

Rack and pinion focusing with slip clutch and tension adjustment

“Slip-clutch” system protects against over-focusing with 180 graduations.

Illumination

3 W NeoLED™ adjustable illumination with internal power supply/charger

Auto voltage sensing power supply, 100-240V

Rechargeable batteries is optional for cordless operation if available

NeoLED™ Illumination

3 W Kohler adjustable illumination with internal power supply/charger

Internal sensing power supply, 100-240V worldwide

Offers large apertures to produce higher resolution images.

Kohler Illumination

A Köhler illumination ensures for all infinity corrected IOS models the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source.

The Köhler illumination is optional for non-IOS models

Cordless use

The optional rechargeable AA batteries turn the bScope into a cordless system.

CSS - Cable Storage System

Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage.

Carrying Grip

The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope.

Anti-theft Slot

At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft.

Package Content

Smart Styrofoam packaging ensures a low environmental footprint while maintaining maximum safety during transport. Supplied with power cord, dust cover, tools, a spare fuse, white filter, user manual and 5 ml immersion oil.

Phase contrast models are supplied with green filter and alignment telescope. An optional aluminum case can be supplied.

APL (Antimicrobial Protection Layer)

Using the same technology already used extensively throughout the healthcare environment in wall coatings, patient lighting, air pressure stabilization and suction liners, APL prevents the growth of unwanted microbes that can cause degradation, discoloration, staining or odors of the Euromex microscopes
