VIEWING HEADS

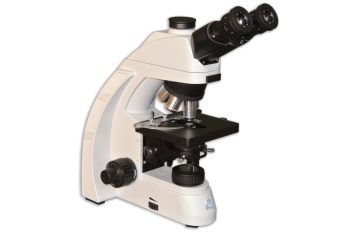

Siedentopf type design, trinocular 30° inclined tube on MT-50 Series, interpupillary distance adjustment 48-75mm, 360 degree rotatable.
EYEPIECES
Paired Plan HWF 10x/20mm F.O.V.with integrated diopter adjustment
OBJECTIVES
Infinity Corrected Plan Achromat 4X/N.A. 0.10, 10X/N.A. 0.25, 40X/N.A. 0.65 spring loaded, 100X oil/N.A. 1.25 spring loaded objectives.
FUNGUS PROTECTION
All optical parts are anti-fungus treated.
NOSEPIECE
Revolving quadruple reversed nosepiece on ball-bearings that is factory centered.
STAGE
149 mm x 138 mm stage with integrated mechanical stage, X-Y movement of 76mm x 50mm
CONDENSER
Abbe condenser, N.A. 1.25 with a slider housing for sliders and pinion for vertical movement
FOCUSING ADJUSTMENT
Coaxial coarse and fine adjustments with adjustable tension control and upper limit stop to prevent objectives from articulating with slides. Internal brass fine focus gears.
ILLUMINATION
3 W intensity adjustable LED illumination, rated for 25,000 hours with internal power supply.
