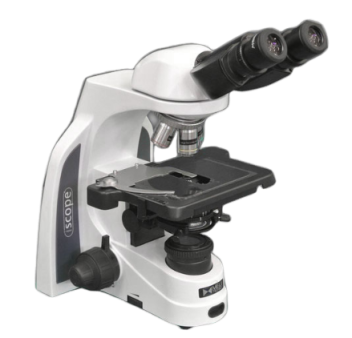

Meiji Techno MT-60 Compound Biological Microscope (4X, 10X, 40X, 100X oil)

Viewing Head: Siedentopf binocular, 30° inclined

Interpupillary Distance: 47–76 mm

Eyepieces: EWF 10x/20 mm

Objectives: Plan PLi 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil-immersion DIN IOS

Fungus Protection: All optical parts treated

Nosepiece: Revolving quadruple reversed nosepiece on ball-bearings

Stage: 228.6 × 140 mm

Mechanical Stage: Integrated 79 × 52 mm

Condenser: Height adjustable Abbe condenser, N.A. 1.25

Focusing Adjustment: Coaxial coarse and fine; 2 µm precision; 20 mm travel; friction adjustment

Protection: Rack-stop

Illumination: NeoLED™ Köhler 3W, intensity adjustable

Power Supply: Internal 100–240V

iCare Sensor: Automatic illumination shut-off when user steps away

CSS – Cable Storage System: Rear cable storage; includes power cord, 500 mA 250V fuse, dust cover

Filters: Unmounted blue and green filters, 44.0 mm

Filter Holder: 44.8 mm

Trinocular Tube: 23.2 mm inner diameter; 3 mm Allen key to attach; 2.4 mm Allen key to rotate

Tension Adjustment: “C” wrench

Immersion Oil: Supplied for 100x objective
