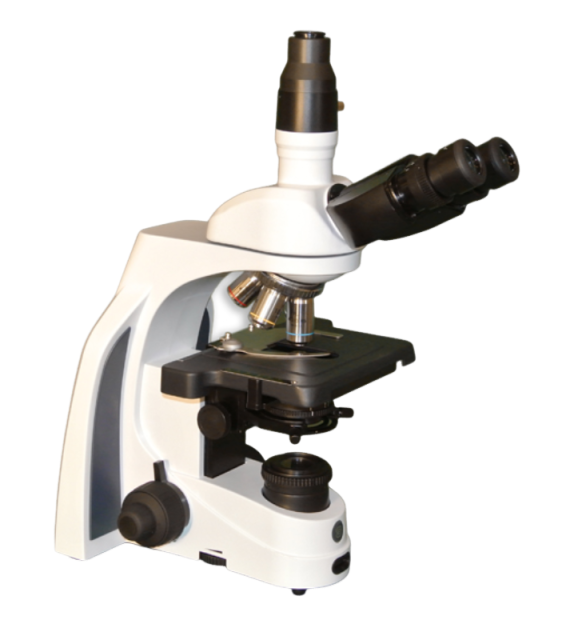

Meiji Techno MT-61 Trinocular Brightfield Upright Biological Compound Microscope (4X, 10X, 40X, 100X oil)

VIEWING HEADS

Trinocular with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with diopter adjustment on both eyepieces

EYEPIECES

EWF10x/20 mm

OBJECTIVES

Plan PLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil-immersion DIN IOS objectives

FUNGUS PROTECTION

All optical parts are anti-fungus treated.

NOSEPIECE

Revolving quadruple reversed nosepiece on ball-bearings that is factory centered.

STAGE

228.6mm x 140 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage

CONDENSER

In height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders

FOCUSING ADJUSTMENT

Coaxial coarse and fine adjustments, 2 µm precision, 20 mm travel range. Rack-stop for protection of slides and objectives. Friction adjustment

ILLUMINATION

Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240V power supply. Auto Voltage Sensing Power Supply

iCARE SENSOR

The unique  Meiji Techno MT-61 iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the  microscope automatically switches off when the microscopist steps away from his position

CSS - CABLE STORAGE SYSTEM

The Cable Storage System of the MT-61 allows the user to practically insert the power cable into the backside of the instrument, which enables easy storage, Delivered with power cord, 500 mA 250V spare fuse and dust cover
