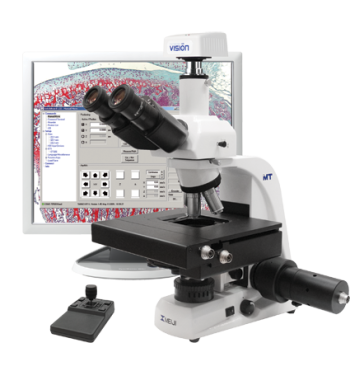

Meiji Techno MT5300LM Motorized Biological Microscope (4X, 10X, 40X, 100X)

MT5300LM Features:

Motorized stage for biological microscope, 2 or 3 levels, 75x30 mm

Automated focus control (Z-movement)

Mechanical stage and focus control

Vision CAM 3200- USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS

PC/Monitor – CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080

Keyboard and Mouse

ICOS™ (Infinity Corrected Optical System) with advanced optics

Super widefield high eyepoint eyepieces 10x, F.N. 22 (standard)

Ergonomic revolving nosepiece for 5 objectives to change magnification

New advanced Planachromat infinity corrected objectives

Koehler illumination 6 V, 30 W high-brightness LED or halogen transmitted light illuminator

Built-in power supply with automatic voltage detection

Abbe condenser or universal Zernike phase contrast condenser

Various filters and accessories

Research methods include brightfield, darkfield, phase contrast, and polarized light

Photo and video documentation

Meiji Techno MT5300LM has the following items:

Microscope Components:

MT5300L microscope stand

Trinocular head with photo port

Eyepiece block for Siedentopf style head

SWH 10x F.N. 22 mm eyepiece (2)

Rubberized Eyepiece eyeshields (2)

Condenser Numerical Aperture 0.9/1.25

Stage Components:

Motorized stage for 1 slide

MA motorized focus drive

Adapter plate for focus drive (two plates, steel pin, screw)

Retaining ring for focus drive

Spring-loaded coupling with two screws

Tango 3-axis controller and 3-axis joystick

Countersunk screw M3x6 DIN 7991 for focus drive (2)

Allen screw M3x8 DIN 912 for stage (4)

Screw kit (SW 3.0 2.5 2.0 1.5 1.3)

CPU and Monitor Components:

High power PC with monitor and keyboard

Mouse with mouse pad

Microscope dust protection

Object micrometer

Vision Slide Software (CD)

Protection dongle

3-axis motor cable

Power cable (specify 110V or 220V)

Surge protector

Microscope Objectives:

Objective U Plan 4x/0.10

Objective U Plan 10x/0.25

Objective U Plan 40x/0.65

Objective U Plan 100x/1.25

Microscope Camera:

Optical C”-mount 0.5x

Digital camera CAM V3200

Camera power supply

Camera power extension cord

Camera USB cable
