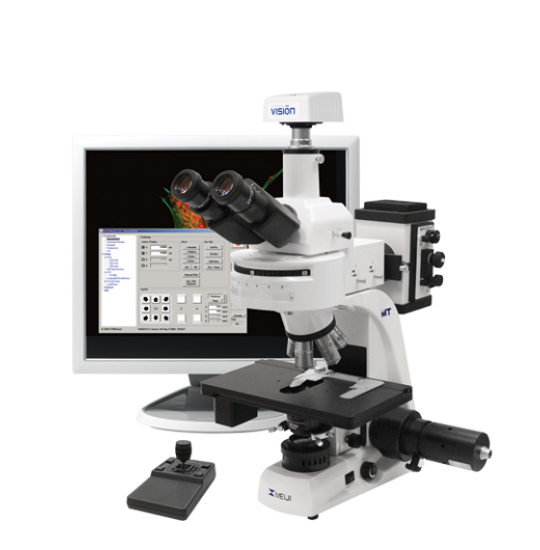

Meiji Techno MT6300CLM Motorized Fluorescence Microscope

MT6300CLM Features:

Motorized stage for biological microscope, 2 or 3 levels, 75x30 mm

Automated focus control (Z-movement)

Automated Mechanical stage control for 1 slide scanning (X-Y movement)

Vision CAM 3200 - USB 3.0 digital output, 5.1 MP, image sensor CMOS 1/1.8”, resolution: 2064x1544 pixels, 120 fps, Sony IMX252 CMOS

PC/Monitor, Keyboard and Mouse Package - CPU Intel Core i7 7 Gen, GPU NVIDIA GeForce GTX x50 4GB, RAM 8 GB, HDD 1 GB, USB 3.1 Gen 1, Windows 10 64x, monitor resolution: 1920x1080

ICOS™ (Infinity Corrected Optical System with tube lens: F=200 mm) with advanced optics

Super widefield high eyepoint eyepieces 10x, F.N. 22 (standard)

Ergonomic revolving nosepiece for 5 objectives to change magnification

New advanced Plan Semi Apo infinity corrected objectives for fluorescence methods

Reflexless Semi Apo F10x/0.40, F20x/0.65, F40x/0.80, F100x/1.25 objectives

Fluorescence module: fluorescence reflected light illuminator with a mount for six fluorescent filter sets

Comfortable Siedentopf Viewing Heads

Six Position Fluorescence Module with three Chroma Fluorochromes included:

CHROMA - 19002 - AT-GFP/FITC - Basic Blue (optional)

CHROMA - 19004 - AT-TRITC/Cy3 - Basic Green (optional)

CHROMA - 3900 - AT-DAPI/Hoechst/AlexaFlour - Basic UV (optional)

MA898 Empty filter cube available as an option to fit in the additional 3 empty filter cube spots for specialized Chroma filters

Lamphouse for CoolLED lamp

Koehler illumination reflected CoolLED lamp and 6 V, 30 W halogen transmitted light illuminator

Abbe condenser

Research methods include fluorescence, brightfield

Camera for Photo and video documentation

Brightfield and Epi-Fluorescence modes

LED Transmitted Koehler + CoolLed Epi Module

LED products are more sustainable and energy efficient than conventional illuminators

Mercury-free

Energy Efficient: 80% less power

Long lifetime (25,000 operating hours)

No Bulb replacements

Works with everyday fluorophores/stains

Affordable through lab consumables budget

Broad spectrum - covers UV (DAPI) to Red region (Cy5)

Specify for existing single and multi-band filter sets – no need to buy new filters

Instant on/off - No shutters required, no warm up or cool down

Stable & repeatable – reliable and consistent results

Precise intensity control in 1% steps (0-100%) – no ND filters required

Excellent uniformity over field of view – fixed and stable, no alignment necessary

Meiji Techno MT6300CLM has the following items:

Microscope Components:

MT6300L microscope stand

Trinocular head with photo port

Eyepiece block for Siedentopf style head

SWH 10x, F.N. 22 mm eyepiece (2)

Rubberized Eyepiece eyeshields (2)

Condenser, Numerical Aperture 0.9/1.25

Fluorescence Block with filters (MT-FL)

Lamp housing for fluorescence module (CoolLED)

Power supply for fluorescence module (MT-PWJ)

Countersunk screw M3x6 DIN 7991 for focus drive (2)

Allen screw M3x8 DIN 912 for stage (4)

Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3)

Stage Components:

Motorized stage for 1 slide

MA motorized focus drive

Adapter plate for focus drive (two plates, steel pin, screw)

Retaining ring for focus drive

Spring-loaded coupling with two screws

Tango 3-axis controller and 3-axis joystick

CPU and Monitor Components:

High power PC with monitor and keyboard

Mouse with mouse pad

Microscope dust protection

Object micrometer

3-axis motor cable

Power cable (specify 110V or 220V)

Surge protector

Microscope Objectives:

Objective Plan Semi Apo F10x/0.40

Objective Plan Semi Apo F20x/0.65

Objective Plan Semi Apo F40x/0.80

Objective Plan Semi Apo F100x/1.25

Microscope Camera:

Optical C”-mount 0.5x

Digital camera CAM V3200

Camera power supply

Camera power extension cord

Camera USB cable

Movement Resolution:

Travel speed maximum 120 mm/s

Repeatability < 5 µm

Accuracy ± 20 µm
