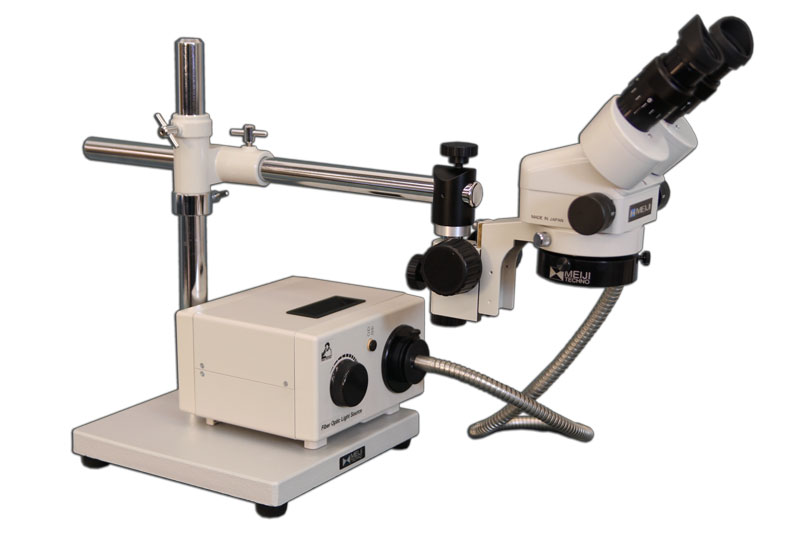

Meiji Techno SMT-5 Stereo Microscope (7X – 90X)

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction

Zoom Ratio: 6.5:1

Zoom Range: 0.7x - 4.5x

Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5

Zoom Control: Dual, graduated, bilateral

Magnification: 7x - 45x (10x eyepieces)

Objective Lens: Brass Construction

Field of View: 32mm - 5.1mm

Working distance: 93mm

Eyetube Inclination: 45°

Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)

Interpupillary Distance: 54mm - 75mm

Dioptric Adjustment: Dual (+/- 5 diopters)

Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)

Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)

Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)

Mounting: Fits 84.5mm Diameter Focus Holders

MA504 Super Widefield Eyepiece 20X (paired) (With 25mm reticle mount)

S-4100 Universal boom stand with 20 mm drop down post for F or FX block 400mm vertical post

MA517 Supplementary lens 0.5X, working distance 150mm (5.9”)

FT192 Annular 150W fiber optic illumination system-110V/ 115V

Includes

EMZ-5 Binocular Zoom Stereo microscope body with zoom range, W.D. 93mm magnification from 7X to 90X (Using SWF10X and SWF20X eyepieces)

MA502 SWF10X super widefield eyepiece (Paired), F.N. 23

MA504 Super Widefield Eyepiece 20X (paired) (With 25mm reticle mount)

S-4100 Universal boom stand with 20 mm drop down post for F or FX block 400mm vertical post

MA517 Supplementary lens 0.5X, working distance 150mm (5.9”)

FT192 Annular 150W fiber optic illumination system-110V/ 115V

Meiji Techno Dust Cover (MA703)

Rubber Eyeguards/ Eyeshields (Paired) (MA600)

EMZ Meiji Techno Instruction Manual
