Weight: 1000kg
Includes:
• USB400MAC Macrozoom 0.7X-5.0X , 1X objective lens
• 5.0 MP CMOS,USB 2.0 Camera
• Basic Image Capture/Video and Measurement Software for PC (not MAC Compatible)
• Coarse Focus Block
• Ergonomic 32mm pole stand with 205mm x 273mm base
X-1000U Specifications
• Color: Black
• Image Sensor: 5MP
• Work with: Monocular microscope, Stereo Microscope, Biological microscope, Metallurgical Microscope, Lens of Machine Vision System
• Work mode: USB 2.0
• Pixel Size: 2.2μm×2.2μm
• Dynamic Range: 74.3db
• SNR: 40db
• Spectral response: 380-650nm
• Exposure: 3.9ms-320ms, Automatic and manual
• White balance: Real-time auto, single auto, manual adjustment
• Preview resolution:
• USB mode: 30fps@2592×1944, 1920×1080,1024×768, 640×480
• WiFi mode: 30fps@2592×1944, 1920×1080,1024×768, 640×480
• Record format:
• Snapshot Format: JPG,BMP,PNG,TIFF,PDF, Resolution: 2592×1944,1920×1080,1024×768, 640×480
• Record Format: MJPG format AVI file, Resolution: 30fps@1920×1080,1024×768, 640×480

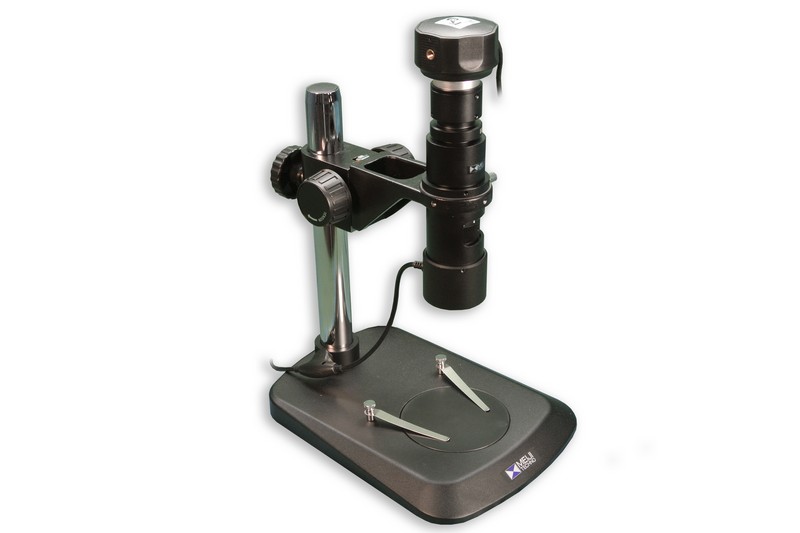

USB400MAC is a 0.7X-5.0X Macrozoom direct to video turnkey system with a 5 MP USB 2.0 camera (X-1000U) which can take still shots and live video at 10 fps and basic measurement software. Equipped with a 16 LED array ring illumination with rheostat powered by USB 2.0. The USB400MAC has a 1x objective and a 0.4x trinocular eyepiece on a 205 mm x 273 mm ergonomic 32 mm slope stand with a coarse focus block and a working distance of 105 mm (4”) equipped with basic measurement software for your PC. USB400MAC is turnkey Macrozoom system that can be easily set-up by connecting to a PC, it comes equipped with a high resolution 5.0 MP CMOS USB 2.0 Camera, large field of view, three dimensional sense and clear image. Wide applications in educational demonstration (such as biological dissections), and industries like textiles, inspecting metal products, chemicals, plastics, electronics manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing, archeology and many other fields. Standard LED ring light has more stable light source, safe low voltage, small power dissipation, low calorific value and long operating life. The brightness can be adjusted independently, fit for accurate inspection for high reflectance surface and exterior occasions with lamination limits, displaying more details, which is the best inspection device for industries like electron, five metals (gold, silver, copper, iron and tin) and plastics.
