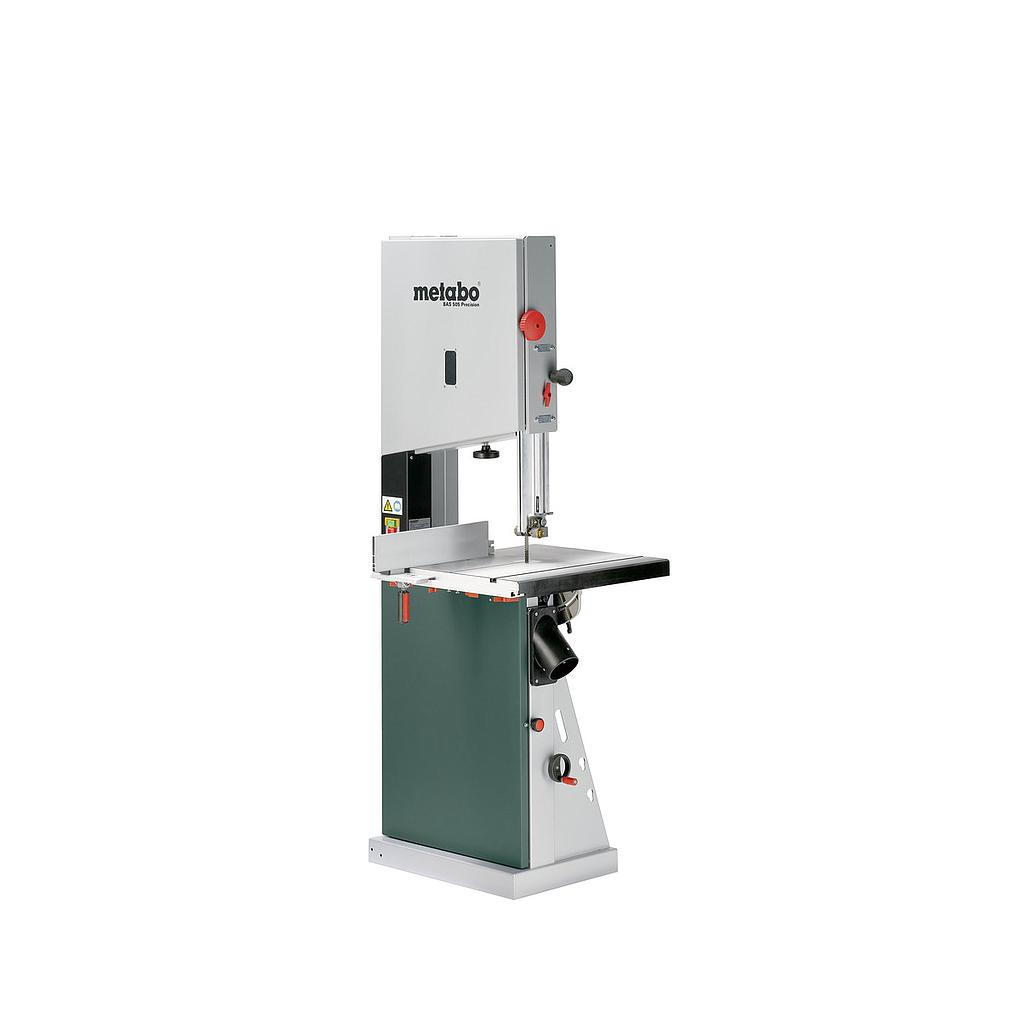

METABO BAS 505 PRECISION WNB Band saw (220-240 V / 50 Hz)

Dimensions: 834 x 639 x 1860 mm / 2.8 x 2.1 x 6.1 ft

Support surface: 536 x 640 mm / 21 1/16 x 25 1/8 "

Working height without stand: 925 mm / 36 1/2 "

Sawing bench swivel range: 0 - 20 °

Cutting height: 280 mm / 11 "

Passage width: 440 mm / 17 3/8 "

Cutting speed: 430 m/min / 1020 m/min m/min

Saw belt length: 3380 mm / 133 "

Mains voltage: 220 - 240 V

Rated input power: 1500 W

Output power: 1100 W

Weight: 133 kg / 293 lbs

Noise emission

Sound pressure level: 82 dB(A)

Sound power level (LwA): 90 dB(A)

Uncertainty of measurement K: 4 dB(A)


Delivery

Universal band saw blade A6

Parallel Guide / Rip Fence

Extraction nozzle (Ø 100 mm)

Accessories

SAWING

Band saw blades, Further accessories for band saws, Other accessories for semi-stationary/stationary saws

OTHER ACCESSORIES

COccupational safety

Details

Datasheet


Features

High precision and stability for highest cutting quality

Two cutting speeds for various applications and materials

Top and bottom HSS precision three-roller guide of the band saw blade for best cutting results, adjustable without tools

Quiet induction motor, maintenance-free and robust.

Restart protection: prevents unintentional start-up after power supply interruption

Easy inclination adjustment of the grey cast iron saw table for precise incline cuts thanks to toothed ring guide

Door opening without tools for easy saw blade change

Viewing window for blade clamp indicator for fast control of the blade clamping from outside

Tool-less height adjustment of the saw blade guard

Attachments can be stored in the saw housing

External extraction possible for low-dust working

Radius cutting with circle sawing attachment (accessory)
