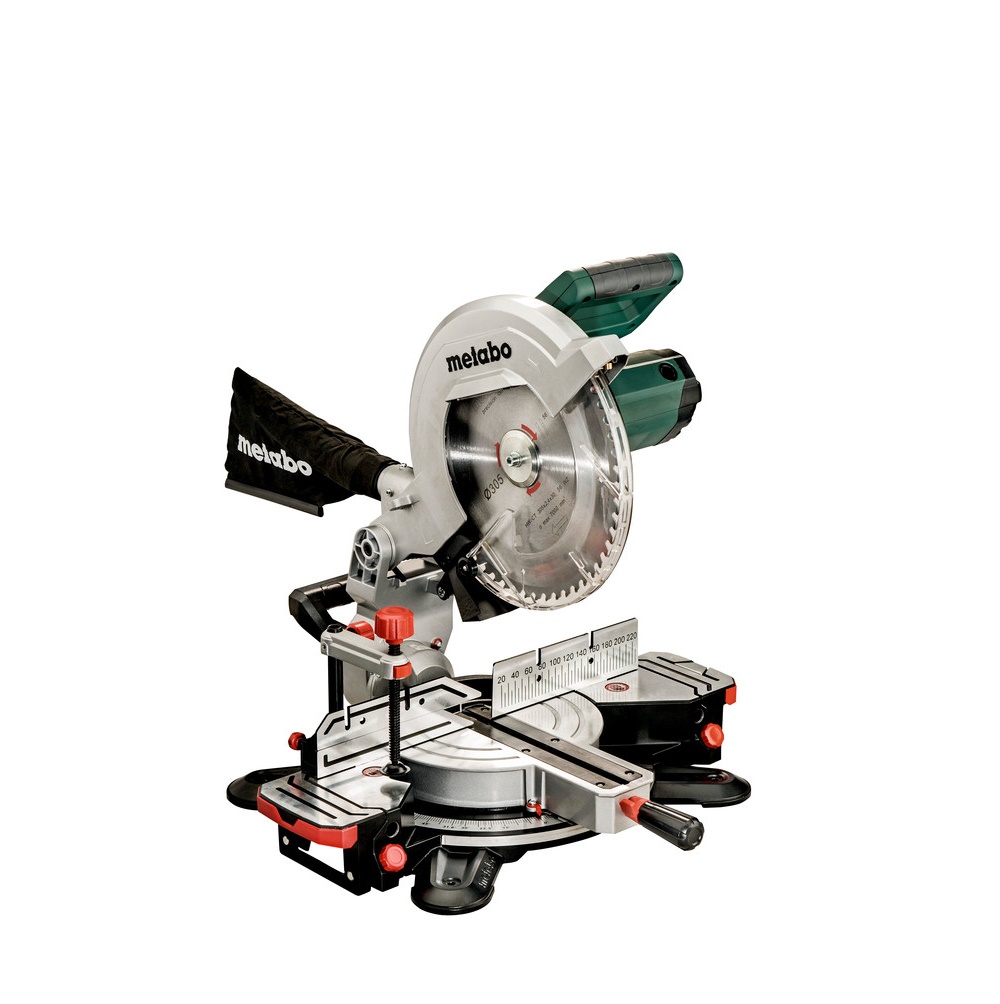

METABO KS 305 M Metre saw (220-240 V / 50-60 Hz)
Manufacturer: METABO Model: KS 305 M P/N: 619003000 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Dimensions: 600 x 600 x 600 mm / 23 5/8 x 23 5/8 x 23 5/8 "
Support surface: 340 x 775 mm / 13 3/8 x 30 1/2 " mm
Maximum cutting width 90°/45°: 200 / 140 mm // 7 7/8 / 5 1/2 "
Maximum cutting depth at 90°/45°: 102 / 60 mm // 4 / 2 3/8 "
Cutting capacity 90°/90°: 200 x 80 mm / 7 7/8 x 3 5/32 "
Cutting capacity 45°/45°: 130 x 45 mm / 5 1/8 x 1 25/32 "
Turntable setting left/right: 52 / 52 °
Saw blade tilt left/right: 47 / 2 °
Saw blade: 305 x 30 mm / 12 x 1 3/16 "
Rated input power S1 100%: 1600 W
Rated input power S6 20%: 2000 W
No-load speed: 3700 rpm
Revolutions at rated load: 2600 rpm
Cutting speed: 60 m/s / 197 ft/s
Weight: 17 kg / 37.5 lbs kg
Cable length: 2 m / 6.5 ft
Noise emission
Sound pressure level: 97 dB(A)
Sound power level (LwA): 104 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Carbide saw blade (56 teeth)
Supplementary Fence
Material clamp
Tool for saw blade change
Cable winder
Chip Collection Bag
2 x Table length extensions
Length Guide
Accessories
SAWING
Circular saw blades, Other accessories for semi-stationary/stationary circular saws, Further accessories for crosscut and mitre saws, Further accessories for band saws, Other accessories for semi-stationary/stationary saws
OTHER ACCESSORIES
COccupational safety
Datasheet
Features
Highest precision from direct saw head mount.
Compact light weight, suitable also for one-handed transport
Robust die-cast aluminium design for the highest demands
Easy transport thanks to ergonomically-designed handles and saw head lock
Effective dust extraction via integrated dust scoop
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteries required)
Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
Sliding high rear fence profiles for safe sawing
Material clamp for secure fixing of the work piece from the top or front
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
