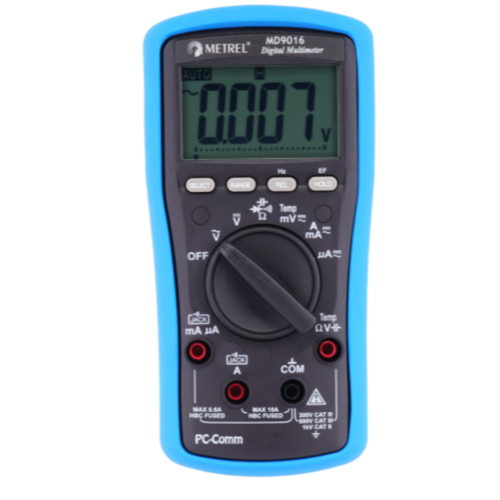

Metrel MD 9016 Standard set Digital Multimeter (60.00 mV … 1000 V; 600.0 µA … 10.00 A)

DC Voltage: 60.00 mV … 1000 V / From ±(0.4% of reading + 5 digits) to ±(0.2% of reading + 3 digits)

AC Voltage (50 Hz ~ 500 Hz): 60.00 mV … 1000 V / ±(1.0% of reading + 5 digits)

DC Current: 600.0 µA … 10.00 A / From ±(0.5% of reading + 5 digits) to ±(1.8% of reading + 6 digits)

AC Current (50 Hz ~ 400 Hz): 600.0 µA … 10.00 A / From ±(1.0% of reading + 3 digits) to ±(1.8% of reading + 6 digits)

Diode Test:

1.000 V / ±(1.0% of reading + 3 digits)

Open-circuit voltage < 1.8 V DC, Test current 0.56 mA

Resistance: 600.0 Ω … 60.00 MΩ / From ±(0.5% of reading + 4 digits) to ±(1.2% of reading + 4 digits)

Capacitance: 60.00 nF … 3000 µF / From ±(1.5% of reading + 5 digits) to ±(2.0% of reading + 5 digits)

Temperature:

-50 °C … 1000 °C / ±(0.3% of reading + 3 digits)

-58 °F … 1832 °F / ±(0.3% of reading + 6 digits)

Frequency of Digital Equipment: 5.00 Hz … 1.000 MHz / ±(0.003% of reading + 2 digits)

Mains Frequency: 10 Hz … 50 kHz / ±(0.003% of reading + 3 digits)

Power Supply: 2 × 1.5 V AAA batteries

Overvoltage Category: CAT IV / 300 V; CAT III / 600 V; CAT II / 1000 V

Dimensions: 161 × 80 × 50 mm

Weight: 340 g

•Multimeter MD 9016 with rubber holster

•Test lead with probe, 2 pcs

•Thermocouple probe, type K

•1.5 V battery, type AAA, 2 pcs

•Instruction manual

•Warranty
