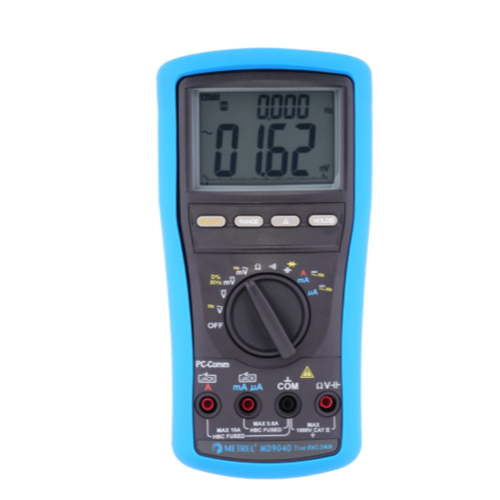

Metrel MD 9040 Standard set Digital Multimeter (TRMS 60.00 mV … 999.9 V; 600.0 µA … 10.00 A)

TRMS AC Voltage (40 Hz … 20 kHz): 60.00 mV … 999.9 V / From ±(0.5% of reading + 3 digits) to ±(3.0% of reading + 4 digits)

DC Voltage: 60.00 mV … 999.9 V / From ±(0.06% of reading + 2 digits) to ±(0.12% of reading + 2 digits)

DC Current: 600.0 µA … 10.00 A / ±(0.2% of reading + 4 digits)

TRMS AC Current (40 Hz … 1 kHz): 600.0 µA … 10.00 A / From ±(0.6% of reading + 3 digits) to ±(1.0% of reading + 4 digits)

Diode Test:

2.000 V / ±(1.0% of reading + 1 digit)

Open-circuit voltage < 3.5 VDC, Test current 0.4 mA

Resistance: 600.0 Ω … 60.00 MΩ / From ±(0.1% of reading + 3 digits) to ±(1.5% of reading + 5 digits)

Mains Frequency: 15.00 Hz … 50.00 kHz / ±(0.04% of reading + 4 digits)

Frequency of Digital Equipment: 5.00 Hz … 1.000 MHz / ±(0.004% of reading + 4 digits)

Capacitance: 60.00 nF … 25.00 mF / From ±(0.8% of reading + 3 digits) to ±(6.5% of reading + 5 digits)

Power Supply: 9 V battery (NEDA1604G, JIS006P, or IEC6F22)

Overvoltage Category: CAT IV / 1000 V

Dimensions: 208 × 103 × 64.5 mm

Weight: 635 g

• Multimeter MD 9040 with rubber holster

• Test lead with probe, 2 pcs

• 9 V battery

• Instruction manual

• Warranty
