Metrel MI 3114 Pro set Photovoltaic And Electrical Insulation Tester (1500 V)

PHOTOVOLTAIC MEASUREMENTS

Voltage:

20.0 … 199.9 VDC / ±(1 % of reading + 2 digits)

200 … 1999 VDC / ±1 % of reading

Current:

0.10 … 0.99 ADC / ±6 digits

1.00 … 9.991 ADC / ±(1 % of reading + 3 digits)

10.00 … 39.99 ADC / ±1 % of reading

ELECTRICAL INSTALLATION MEASUREMENTS

Insulation Resistance (Roc-, Roc+) at 250 VDC:

0.12 … 19.99 MΩ / ±(5 % of reading + 3 digits)

20.0 … 199.9 MΩ / ±10 % of reading

Insulation Resistance (Roc-, Roc+) at 500 V, 1000 V, 1500 VDC:

0.12 … 19.99 MΩ / ±(5 % of reading + 3 digits)

20.0 … 199.9 MΩ / ±5 % of reading

200 … 999 MΩ / ±5 % of reading

Insulation Resistance (Roc): Calculated Value

Continuity (200 mA):

0.00 … 19.99 Ω / ±(3 % of reading + 3 digits)

20.0 … 199.9 Ω / ±5 % of reading

200 … 1999 Ω / ±10 % of reading

GENERAL DATA

MAIN UNIT

Display: 4.3" Colour TFT LCD with touch screen (480 x 272 pixels)

Power Supply: 14.4 V (4400 mAh) Li-Ion battery, non-removable

Overvoltage Category: CAT II / 300 V

Protection Classification: Reinforced insulation

Degree of Protection: IP 54 (cover closed) / IP 40 (cover opened)

Altitude: Up to 4000 m

Memory: microSD card slot (up to 512 GB)

Connectivity: RS232, USB 2.0, Bluetooth v4.2, Wi-Fi 802.11 b/g/n

Weight: 4.4 kg

Dimensions (L x H x W): 310 x 130 x 250 mm

REMOTE UNIT A 1785

Display: 128 x 64 dots matrix display with backlight

Power Supply: 9 VDC (6 x 1.5 V AA batteries or accu)

Degree of Protection: IP 40

Weight: 1 kg

Dimensions (L x H x W): 140 x 80 x 230 mm

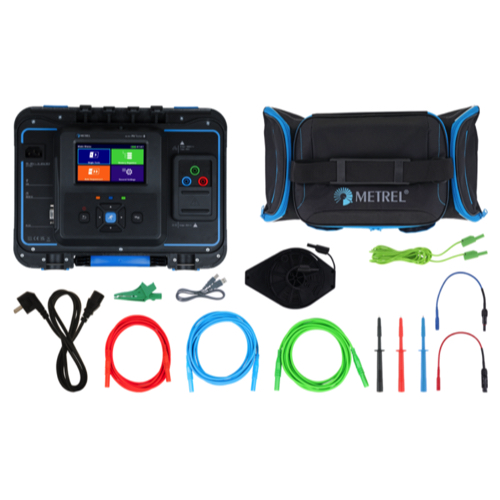

• Instrument MI 3114

• A 1790 BLU Test lead, Blue, 3m, 2.5mm2

• A 1790 RED Test lead, Red, 3m, 2.5mm2

• A 1792 Test lead, Green, 3m, 0.75mm2

• S 2146 Set PV MC4 to banana adapters

1500 V

• A 1509 Test lead, Black, 50m, 0.75mm2

• A 1012 Test lead, Green, 4m, 0.75mm2

• A 1309 Crocodile clip, Green

• A 1014 Test probe, Black

• A 1015 Test probe, Blue

• A 1016 Test probe, Red

• A 1727 Communication cable, 1m, USB

type B/A

• A 1728 Power cable, 2m, 3x0.75mm2

• A 1551 Soft padded carrying bag, Size: L

• SW 1201 Metrel ES Manager (MESM)

• P 1000-EU Licence key basic

• Calibration certificate for MI 3114

• User Manual

• A 1785 PV remote unit

• A 1833 PV temperature sensor

• A 1834 PV reference cell

• 2x A 1835 Clamp for attaching accessories

• A 1791 Carrying strap with tightening

buckle

• S 2080 6 Rechargeable batteries 1.2 V,

2100 mAh, type AA

• A 1548 Power supply adapter 0.5A/12V

• Calibration certificate for A 1785
