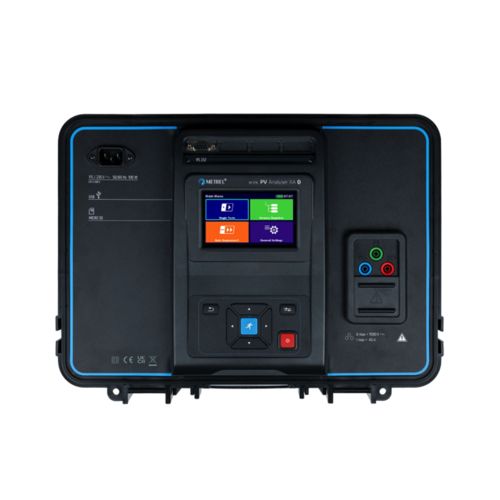

Metrel MI 3116 Photovoltaic And Electrical Insulation Tester (1500 VDC; 40 ADC; 1500 V)

PHOTOVOLTAIC MEASUREMENTS

Voltage:

20.0 … 199.9 VDC / ±(1 % of reading + 2 digits)

200 … 1699 VDC / ±1 % of reading

Current:

0.10 … 9.99 ADC / ±(1 % of reading + 3 digits)

10.00 … 39.99 ADC / ±1 % of reading

Power:

0.2 … 199.9 W / ±(2 % of reading + 5 digits)

200 … 1999 W / ±2 % of reading

2.00 kW … 19.99 kW / ±2 % of reading

20.0 kW … 48.0 kW / ±2 % of reading

I/U Curve Max Limits: 1500 V / 40 A / 48 kW

Irradiation (A 1834):

0 … 999 W/m² / ±(4 % + 5 digits)

1.00 … 1.75 kW/m² / ±4 % of reading

Temperature (A 1833): -10.0 … 85.0 °C / ±5 digits

ELECTRICAL INSTALLATION MEASUREMENTS

Insulation Resistance (Roc-, Roc+) at 250 VDC:

0.00 … 19.99 MΩ / ±(5 % of reading + 3 digits)

20.0 … 199.9 MΩ / ±10 % of reading

Insulation Resistance (Roc-, Roc+) at 500 V, 1000 V, 1500 VDC:

0.00 … 19.99 MΩ / ±(5 % of reading + 3 digits)

20.0 … 199.9 MΩ / ±5 % of reading

200 … 999 MΩ / ±5 % of reading

Insulation Resistance (Roc): 0.00 … 999 MΩ / Calculated Value

Continuity (200 mA):

0.00 … 19.99 Ω / ±(3 % of reading + 3 digits)

20.0 … 199.9 Ω / ±5 % of reading

200 … 1999 Ω / ±10 % of reading

GENERAL DATA

MAIN UNIT

Display: 4.3" Colour TFT LCD with touch screen (480 x 272 pixels)

Power Supply: 14.4 V (4400 mAh) Li-Ion battery, non-removable

Mains Power: 100 V … 240 VAC, 50/60 Hz, 100 W

Memory: microSD card slot (up to 512 GB)

Connectivity: RS232, USB 2.0, Bluetooth v4.2, Wi-Fi 802.11 b/g/n

Protection Classification: Reinforced insulation

Degree of Protection: IP 54 (cover closed) / IP 40 (cover opened)

Weight: 6.8 kg

Dimensions (L x H x W): 420 x 180 x 330 mm

REMOTE UNIT

Display: 128 x 64 dots matrix display with backlight

Power Supply: 9 VDC (6 x 1.5 V AA batteries or external adapter)

Weight: 1 kg

Dimensions (L x H x W): 140 x 80 x 230 mm

Datasheet
