HUMAN-MACHINE INTERFACE
- Type of display: 5.7"colour TFT LCD (1/4 VGA) - 320 x 240 – Backlighting (adjustable automatic power off)
- Display mode: 2,500 real acquisition points on screen – Vectors with interpolation, envelope and averaging (2, 4, 16, 64
- On-screen display of curves: 4 curves + 4 references – Cumulated mode (brighter colour of recent acquisitions)
- Screen commands: Touch screen – "Windows-like" menus and graphical commands
- Choice of language: 5 complete languages with menus & online help (English, French, Italian, Spanish and German)
OSCILLOSCOPE MODE : 4 channels
- Vertical deflection
+ Bandwidth: 200 MHz; 15 MHz, 1.5 MHz or 5 kHz bandwidth limiter
+ Number of channels: 4 channels with plastic BNC connectors isolated from the earth
+ Input impedance: 1 MΩ ± 0.5 % , approx. 15 pF
+ Maximum input voltage: 600 V / CAT II - 850 Vp (DC + AC peak at 1 kHz) without 1/10 probe – Derating of -20 dB per decade from 100 kHz
+ Vertical sensitivity: Ranges from 2.5 mV to 200 V/div – Accuracy: ± 2 %
+ Vertical zoom "One Click Winzoom"system (12-bit converter and graphical zoom directly on screen) – x 16 max.
+ Probe factors: 1 / 10 / 100 / 1,000
- Horizontal deflection
+ Sweep speed: 1 ns/div to 200 s/div., accuracy: ± [50 ppm +500 ps]
+ Horizontal zoom: "One Click Winzoom"x100 system (graphical zoom directly on screen)
- Triggering
+ Mode: On all 4 channels (CH1 to CH4): automatic, triggered, one-shot, auto level 50 %
+ Type: Edge, pulse width (16 ns - 20 s), delay (120 ns to 20 s), counting (3 to 16,384 events), TV frame or no. of lines (525 = NTSC or 625 = PAL/SECAM) – Continuous adjustment of Trigger position
+ Coupling: AC, DC, HFR, LFR – Hold-Off adjustable from 160 ns to 30 s
- Digital memory
+ Maximum sampling rate: 100 GS/ in ETS mode – 2.5 GS/s in one-shot mode on each channel
+ Vertical resolution: 12 bits
+ Memory depth: 50,000 points/channel
+ User memory: 2 MB for storing files: trace, text, configuration, MATH functions, print files, image files, etc.+ removable large-capacity SD-Card (2 GB)
+ GLITCH mode: Duration ≥ 2 ns - 2,500 Min/Max pairs
+ Display modes: Envelope, Averaging (factors 2 to 64), cumulative and XY (vector)
- Other functions
+ AUTOSET: Complete in less than 5 s, with recognition of the channels – Frequency > 30 Hz, 25 mVpp to 400 Vpp
+ FFT analyser & MATH functions: FFT (Lin or Log) with measurement cursors - Functions: + , - , x , / and mathematical function editor
+ Cursors: 2 cursors: simultaneous V and T or Phase – 12-bit resolution, 4-digit display
+ Automatic measurements: 20 time or level measurements– 12-bit resolution, 4-digit display
MULTIMETER MODE
+ General specifications: 4 channels – 8,000 cts max. + min/max bargraph – TRMS – Time/date-stamped graphical recording (5 min to 1 month)
+ AC, DC, AC + DC voltages: 600.0 mV to 600.0 VRMS, 800.0 mV to 800.0 VDC – accuracy for VDC 0.5 %R +15 D – bandwidth 200 kHz
+ Resistance: 80.00 Ω to 32.00 MΩ – accuracy 0.5 %R + 25 D – 10 ms quick continuity test
+ Other measurements: Capacitance: 5 nF to 5 mF / Frequency: 200.0 kHz / 3.3 V diode test
+ Triggers on measurement window: 4 monitored channels, adjustable fault durations – Up to 200 time/date-stamped faults stored in ".txt"file
HARMONIC ANALYSER MODE (option)
+ Multi-channel analysis: 4 channels, 61 orders, fundamental frequency from 40 Hz to 450 Hz in auto or manual mode
+ Simultaneous measurements: Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms)
RECORDER MODE
+ Duration / Sampling: From 2 s to 1 month / 40 μs to 53 s - 100 faults stored in memory, 200 in files
+ Recording conditions: On thresholds or window, simultaneous conditions on several channels, with adjustable duration from 160 μs
+ Analysis of recordings: Scale and physical units, automatic or cursor measurements, time/date-stamped fault search function, zoom, etc.
General specifications
- Configuration memory: Unlimited – ".CFG " file size: approx. 1 kB
- Printing: Network printer via Ethernet, RS232 or Centronics (option) or VIRTUAL PRINTER print server
- PC communication: Ethernet RJ45, RS232 (option) or USB – "SX-Metro" application software for PC - ScopeNet
- Network: 10 MB remote Ethernet, web server (remote control, "real-time" trace, cursors and automatic measurements) FTP server (file exchange with PC), FTP client (storage on PC hard disk), ScopeAdmin administration utility
- Mains power supply: Universal 100-240 V / 50 / 60 Hz / 20 VA max. with removable cable
- Safety / EMC: Safety as per IEC 6101-1, 2001 - 600 V CAT II – EMC as per EN61326-1
- Mechanical specifications: 225 (h) x 190 (l) x 215 (w) mm - 1.9 kg
State at delivery:

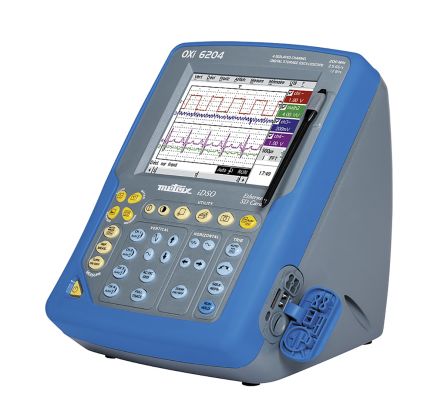

-1 OXi 6204, 1 stylus, 1 user’s manual and 1 programming guide on CD-ROM,
-1 μSD-Card with a capacity of at least 1 GB and SD-Card card adapter, 4 x 1/10 probes,
-1 Ethernet crossover cable and 1 USB/RS232 cable.
Optional accessories:
-HX0028: HARMONICS mode
-HX0106: BNC-BNC cable, 1 m, 600 V (x 2)
-HX0107: 600 V BNC-BAN adapter (x 2)
-HX0108: 1/10 probe kit + 1 BNC/BAN 600 V CAT III adapter
