Manuafacturer: Metrix
Model : PX 120
Item: PX0120
Warranty : 12 month
- Network type: single-phase and three-phase 3 balanced wire (T3FE)
- Number of counts: 3 lines of 4 digits (14 mm)
- Bandwidth: DC to 1 kHz
Active power
- Range: 10 W to 1 kW – 1 kW to 6 kW
- Resolution: 0.1 W – 1 W
- Basic AC / DC accuracy" 1.5% R ± 2 digits / 2.5% R ± 5 digits
Apparent/reactive power
- Range: 10 to 1 k – 1k to 6 k
- Resolution / Basic accuracy VA: 1.5% R ± 2 digits / 1% R ± 2 digits
- Resolution / Basic accuracy VAR: 2% R ± 2 digits
Power factor
- Range: 1.00
- Resolution: 0.01 / 3% R ± 2 digits
Voltage
- Range: 0.5 to 600 V RMS
- Resolution: 100 mV
- Basic AC/DC accuracy: 0.5% R ± 2 digits / 1% R ± 3 digits
- Input impedance: 1 MΩ
Current
- Range: 10 mA to 2 A - 2 A to 10 A RMS
- Resolution: 1 mA – 10 mA
- Basic AC/DC accuracy: 0.7% R ± 5 digits / 1.5% R ± 5 digits
Starting current
- Range: 5 A – 65 A (peak)
- Resolution / Accuracy: 100 mA / 10% R ± 2 digits
GENERAL CHARACTERISTICS
- Interfaces and software: yes
- Power supply: 6 batteries of 1.5 V (LR6) / mains / 40 hours
- Dimensions (depth x length x height): 60 x 108 x 211 mm/ 835 g
- IEC 61010 safety standard: 600 V, Cat. III, pollution level 2
State of Delivery: 2 voltage cables (1 red, 1 black), two 20 A current cables, 2 test probes (1 red, 1 black), 6 batteries, a verification certificate and an operating manual.
Accessories available as optional extras
HX0011 Wattmeter switch
HX0012 Multiratio AC transformer (10, 15 and 30 A)
HX0013 Data acquisition and processing software package for PX 120 and PX 110 wattmeter
HX0021 Mains power supply

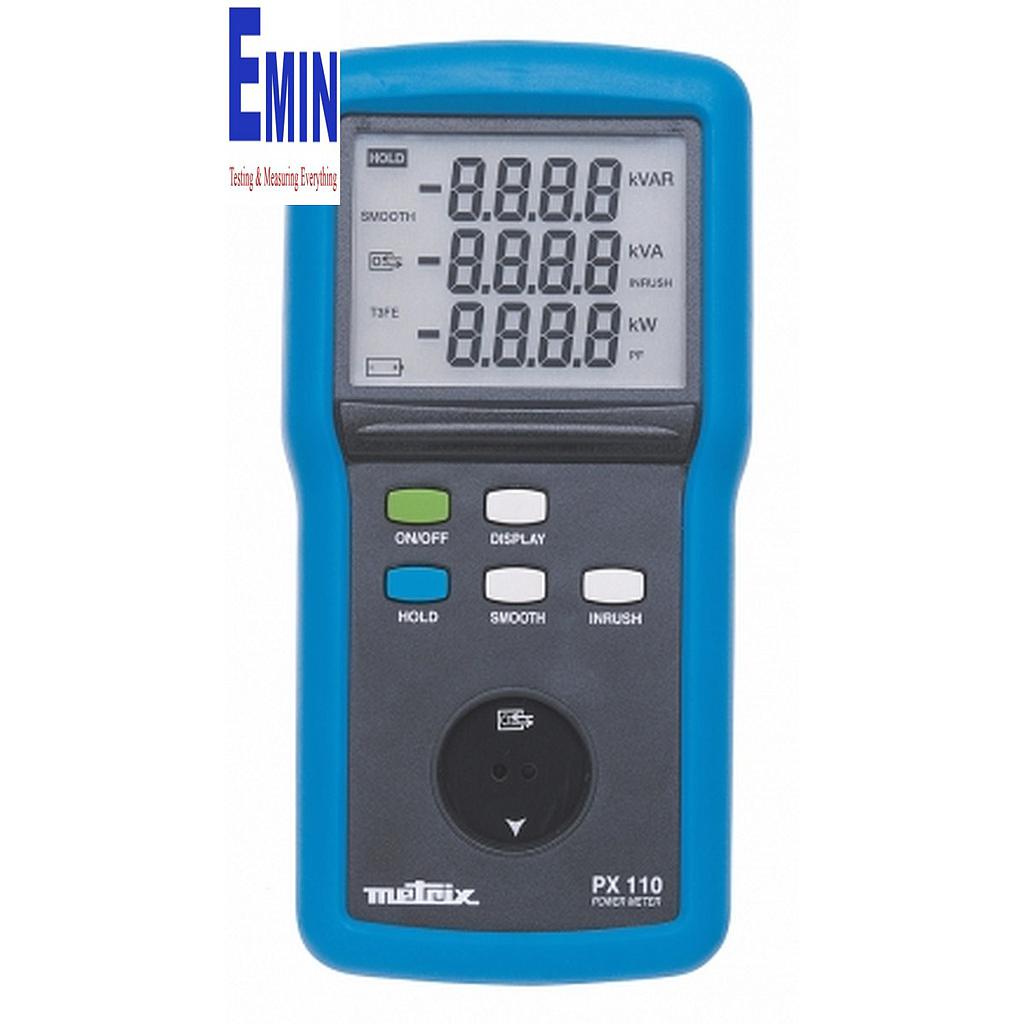

The PX 110 is designed for use in general or technical secondary schools and by installers and industrial maintenance departments.
The PX 110 is for single-phase networks. Although it offers complex functions, this TRMS powermeter is very simple to operate.
It has INRUSH functions for loads which draw large amounts of current and a SMOOTH function, extremely useful in unstable measurement conditions.
It is exceptionally easy to read: 14 mm digits, 999-count display capacity (4 digits) on three lines, simultaneous display of three values: voltage, current and active power or active, reactive and apparent power.
A special feature of this new wattmeter is its infrared transmission mode. The link is established using a magnetized optical head which is positioned quite simply on the front panel of the unit.
The "Wattcom" data processing software is also available as an option for transferring the data, viewing the quantities and printing screenshots.
