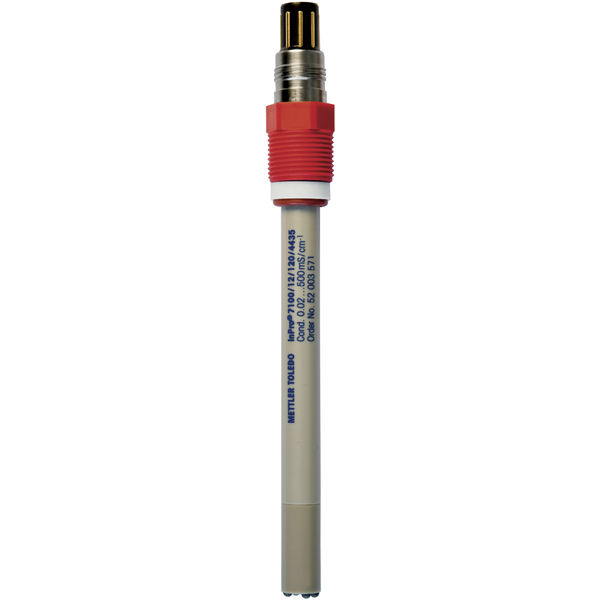

Model Family: 4-electrode sensor
Sterilizable: Yes
Sensor Diameter: 12mm
Sensor Material: PEEK (FDA), Hastelloy C-22
System accuracy: ± 5 % or better
Cable Connection: Vario Pin (IP68)
Measurement Range: 0.02…400mS/cm
Electrode Material: Hastelloy C22
Process Connection: Pg 13.5
Temperature Sensor: PT 1000
Measurement Technology: Conductive
Cell Constant (nominal): 0.31 cm–1
Hazardous Area Approvals: Yes
Primary Media/Application: Chemical, pharmaceutical and F&B processes
Measured Pressure Resistance: 0 - 290 psi @ 275 °F 0 – 145 psig @ 302 °F (0 - 10 bar @ 150 °C 0 - 20 bar @ 135 °C)
Operating Temperature (Celsius): -20...150 °C
Operating Temperature (Fahrenheit): -4...302 °F
Hygienic/Biocompatibility Approvals: No
Mechanical Pressure Resistance (Bar): 0 ...20 bar at 135 °C0 ...10 bar at 150 °C
Mechanical Pressure Resistance (PSI): 0 ... 290 psi at 275 °F0 ... 145 psi at 302 °F
