Accuracy: ± (1 % of the reading + 6 ppb)
IP Rating: IP68

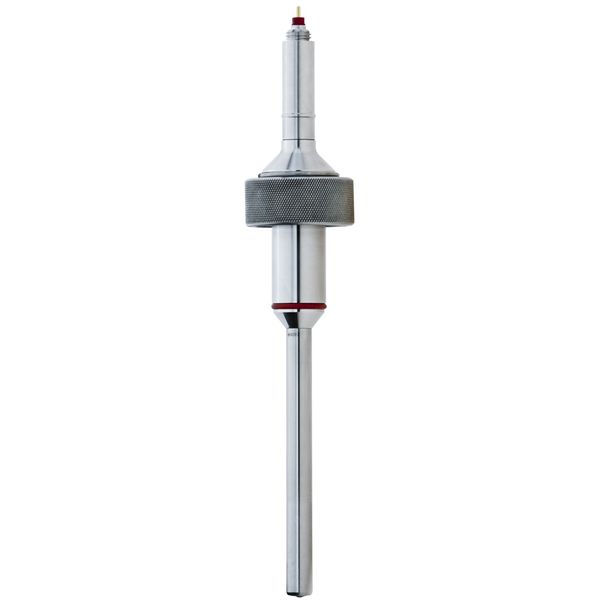

Model Family: InPro 6800/6850i
CIP resistant: Yes
Response Time: T98 = < 90 s @ 25°C (77°F)(air to N2)
Sensor Length: 260 mm
Cable Connector: K8S
Design Pressure: 174 psi (12 bar)
Detection limit: 6 ppb
O-Ring Material: Silicone
Sensor Diameter: 25 mm
Connector Design: Straight
Measurement Range: 0-100% O2 saturation
Anti-Bubble Design: No
Process Connection: Ingold (25mm)
Measurement Parameter: Oxygen
Measuring Temp. Range: 32 °F – 176 °F (0 °C – 80 °C)
Measurement Technology: Amperometric/Polarographic
Mechanical Temp. Range: 23 °F – 284 °F (-5 °C – 140 °C)
ISM (Digital) or Analog: ISM (Digital)
Certificates & Approvals: Quality certificate, Material certificate 3.1, Surface finish certificate, ATEX/IECEx/FM certificate, FDA/USP Class IV
Hazardous Area Approvals: ATEX:/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb/Ex ia IIIC T69°C/T81°C/T109°C/T161°C Da/Db FM (C US): IS / I, II, III / 1 / ABCDEFG/ T6 Ta=60 °C 53 800 002 Entity
Operating Pressure (Bar): 0.2–6 Bar
Operating Pressure (PSI): 0–87 PSI
Wetted Metallic Material: 316L stainless steel
Wetted membrane material: PTFE
Autoclavable/Sterilizable: Yes
Primary Media/Application: Pharmaceutical/Life Science Production
Sterilizable/Autoclavable: Yes
Measured Pressure Resistance: 0.2 bar – 9 bar
Hygienic/Biocompatibility Approvals: EHEDG/FDA/USP Class 7
Surface Roughnes of Wetted Material: N5/Ra16 (Ra=0.4μm/16μin)
Residual signal in oxygen free media: <0.1% of signal in ambient air
Sensor signal in air at 25 °C (77 °F): 50-110 nA
