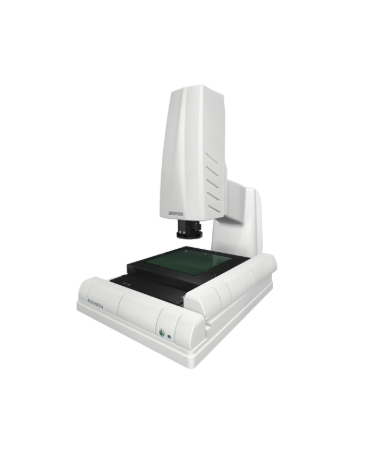

Measurement Volume [mm]: 315 x 315 x 160
Stage Capacity [kg]: 20
Exterior Dimensions [mm]: 900 x 1410 x 1065
Machine Weight [kg]: 150
XY Max Speed [mm/s]: 250
Z Max Speed [mm/s]: 100
Linear Resolution [µm] 0.1
Electrical
Input Voltage [VAC]: 100-240
Power Consumption (Max) [W]: 120
Power Consumption (Idle) [W]: 45
Power Consumption (Sleep) [W]: 35
Environmental
Operating Temperature [°C]: 18 - 27; <1 change per hour, <2 change per day
Storage Temperature [°C]: 0 - 50
Relative Humidity: 30% - 80% (Non-Condensing)
Sound Level [dB(A)]: < 70
Max Altitude [m]: 4000
MACHINE STANDARD FEATURES
(315 mm) X axis travel
(315 mm) Y axis travel
(160 mm) Z axis travel
Linear Accuracy Overall Uxy=2.5+L/180
(10 kg) table weight capacity
Field of view measurement
Color video system
3 axis servo motor system
Joystick for X, Y, and Z movement control
Profile Lighting
MACHINE STANDARD ACCESSORIES
InSpec Classic software for Windows in Windows 11
0.1µm Resolution Encoder Glass scale X, Y, & Z Axis
12x Programmable zoom lens with coaxial lighting with 3:1 Digital Zoom
Macro White LED Surface Ring Light for LWD (1X)
Steel Cabinet for Vertex 341
Device not included
Computer System c/w LCD Monitor
Computer Table
UPS
