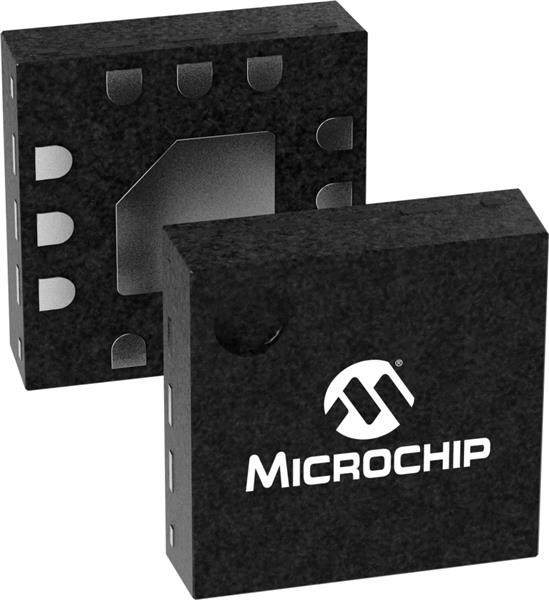

Microchip Technology MCP3565RT-E/SFX Delta-Sigma ADC 24-bit delta-sigma ADC w/Vref, Single channel, 3V

Name: Microchip Technology MCP3565RT-E/SFX Delta-Sigma ADC 24-bit delta-sigma ADC w/Vref, Single channel, 3V
Brand: Microchip Technology

ModelMCP3565RT-E/SFX

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Shutdown: Shutdown

Gain Error: 3 %

Input Type: Differential

Resolution: 24 bit

Architecture: Sigma-Delta

Interface Type: SPI

Mounting Style: SMD/SMT

Reference Type: Internal

Reference Voltage: 2.4 V

Number of Channels: 2 Channel

Number of Converters: 1 Converter

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Analog Supply Voltage: 2.7 V to 3.6 V

Digital Supply Voltage: 1.8 V to 3.6 V

INL - Integral Nonlinearity: 32 PPM

SNR - Signal to Noise Ratio: 107.2 dBc

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

THD - Total Harmonic Distortion: - 111 dB

SFDR - Spurious Free Dynamic Range: 120 dB

SINAD - Signal to Noise and Distortion Ratio: 106.7 dB
