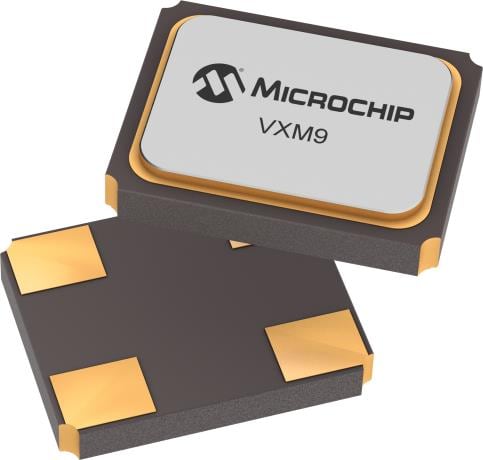

Home Crystals Microchip Technology VXM9-9009-52M0000000 Standard Crystal 2.0x1.65 SMD Crystal, 52MHz, +/-20ppm over -30 to +85C, 7.5pF

Microchip Technology VXM9-9009-52M0000000 Standard Crystal 2.0x1.65 SMD Crystal, 52MHz, +/-20ppm over -30 to +85C, 7.5pF

ESR: 80 Ohms

Width: 1.6 mm

Height: 0.55 mm

Length: 2 mm

Frequency: 52 MHz

Tolerance: 20 PPM

Drive Level: 10 uW

Mounting Style: SMD/SMT

Load Capacitance: 7.5 pF

Termination Style: SMD/SMT

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
