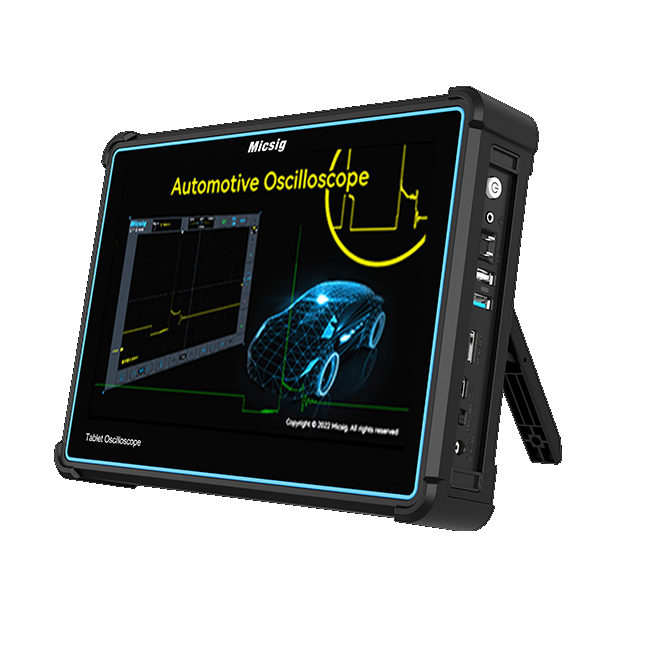

MICSIG ATO1004 Automotive Oscilloscope (100MHz; 4CH; 1GSa/s)

Bandwidth: 100MHz

Rise Time: ≤3.5ns

Analog channels: 4

Real-time sampling rate: 1GSa/s

Memory Depth: 110Mpts

Max. waveform capture rate: 78,000 wfms/s

Input sensitivity range: 1mV/div ~ 10V/div

Bandwith Filter: 20MHz, Low Pass (to 30KHz)

Segmented Storage: Not Support

Input impedance: 1MΩ

Timebase range: 2ns/div ~ 1ks/div

Support Test: Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests

Bus decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out

Storage: 32GB

Display: 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids

Battery: 7.4V , 7500mAh Li-Ion battery

Dimension / Net Weight: 265*192*50mm / 1.9kg（with battery）
