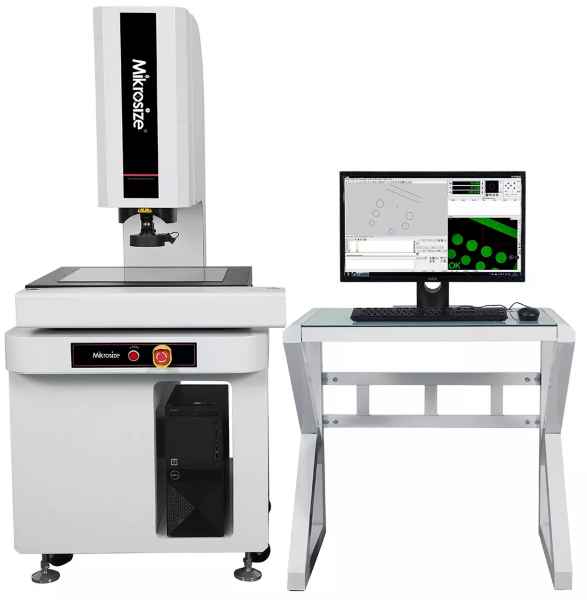

Mikrosize VMC-3020 CNC Video Measuring Machine (2.5D, XY 300x200mm)

X,Y-axis Travel: 300x200mm

Z-axis Travel: 200mm

Dimensions(mm): 750X520X980

Max load Capacity: 25Kg

Net Weight: 240Kg

X/Y/Z 3-axis Linear Scale(2.5D): Resolution:0.5um

Accuracy(um): E1(x/y)=2.5+L/100

Repeatability: ±2um

Movement System: X,Y,Z-axis:Screw Rod

Movement Control: CNC Auto Servo Movement Control

Video System

TEO 1/2" color CCD camera

Manual Coaxial Zoom Lens

Optical Magnification:0.7-4.5x; Video Magnification:20-148x

Working Distance(Standard): 92mm

Object View(Standard): 11.1~1.7mm

Speed(mm/s): X,Y-axis:200   Z-axis:50

Illumination

Contour: Adjustable 256-grade LED Parallel illumination

Surface: Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination

3D Measuerment: 3D Module and UK Renishaw  Touch Probe

Measuring Software: Microsize

Working Environment: Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%

Power Source: AC 100~220V 50/60HZ 10A

VMC CNC Automatic Video Measuring System Standard Delivery

Measuring Software

CCD Camera/Video Capture Card

Manual Coaxial Zoom Lens

Mainframe/Dell PC System

Scale Transfer /Movement Control Card

48 –Division LED Illumination

Linear Scale/Calibration Block

100mm Length Block(3D)

Renishaw Probe MCP-K2(3D)
