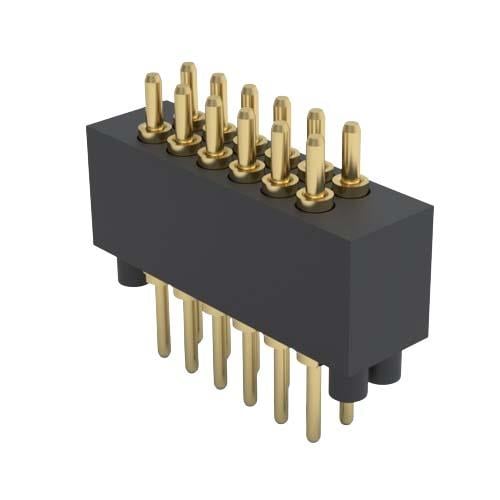

Mill-Max 855-22-012-10-041101 Spring Loaded Header .050" Pitch Spring-Loaded Connector w/ Flat Tip Plunger; TH; Double Row
ManufacturerMill-Max(View more products from this manufacturer)
Model855-22-012-10-041101
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.27 mm (0.05 in)
Contact Gender: Pin (Male)
Mounting Angle: Straight
Mounting Style: PCB Mount
Number of Rows: 2 Row
Voltage Rating: 100 Vrms, 150 VDC
Contact Plating: Gold
Contact Material: Brass
Housing Material: Nylon
Termination Style: Solder Pin
Mating Post Length: 1.4 mm (0.055 in)
Number of Positions: 12 Position
Insulation Resistance: 10 GOhms
Termination Post Length: 2.62 mm (0.103 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
